I-250l inqola umshini wokubumba okhethekile wamakhemikhali

Model:KGB200L/LP

Lo msebenzi wokuqongelela okhethekile we-250l wokuqongelela umgqomo we-blowler blow Sisebenzisa inqubo evulekile yokuvala evulekile enesistimu ye-ablique Arm

IVolumu: 250lIsisindo: 39t

Thumela Uphenyo

Incazelo Yomkhiqizo

Ungqimba olunelungelo lobunikazi, i-Double-BestRow Accumulator Defa ekhanda, kuhlangene Ngeyunithi ye-extruder esebenza kakhulu, ihambisa imiphumela ekhethekile. Leli Umshini wokubumba wokubumba amakhemikhali uhlanganisa ubukhulu be-moog 100 Isilawuli, ingalo ye-robot, kanye nohlelo oluvuthayo olungezansi lokusebenza kahle. Izigubhu ezikhiqizwayo zihlangabezana namazinga ekhwalithi aqinile, kufaka phakathi ukudlula Ukuhlolwa kwe-3-metret drop nokuthola isitifiketi se-UN.

Ukucacisa

Inombolo yomkhiqizo	Indwangu PE, PP, ABS, HMHWDDPE ..	Uhlobo oluvuliwe lokuvala Uchungechunge olukhethekile lomshini
Inombolo yomkhiqizo	Indwangu PE, PP, ABS, HMHWDDPE ..	Imodeli Yomshini: KGB200L / LP
Ukucacisa
1	Umthamo we-MAX	250 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr

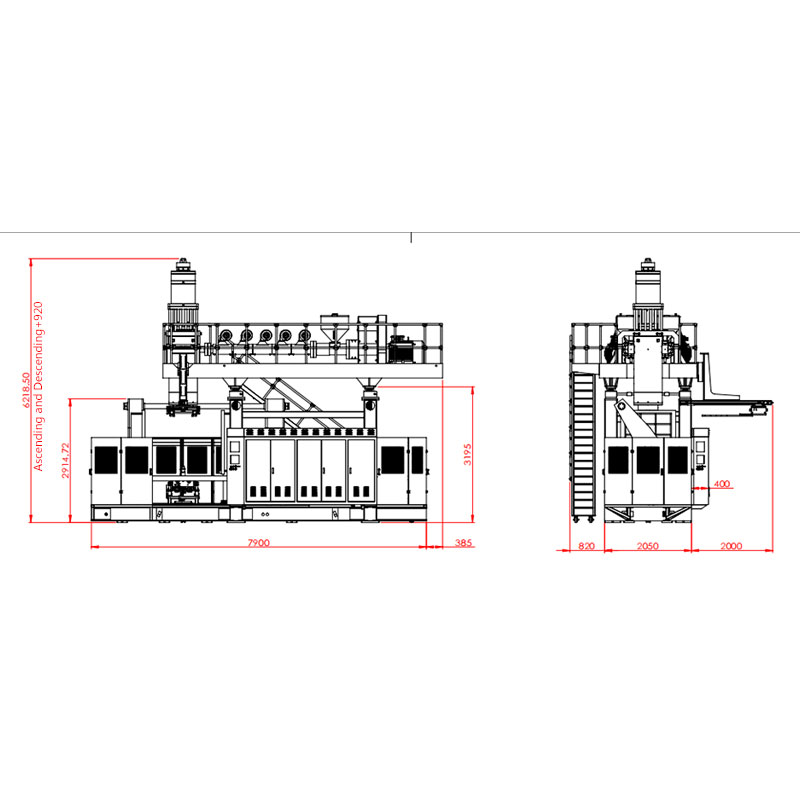

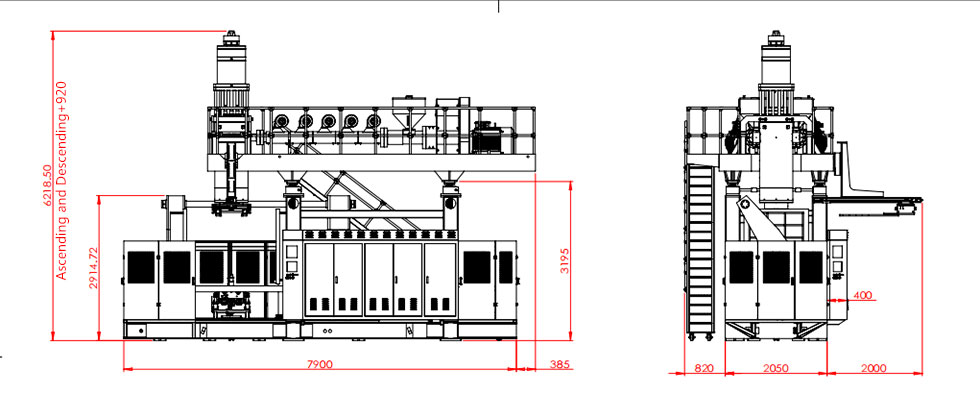

3	I-Machine Dimension (l × w × h × h)	9.5 m x 4.1 m x 6.5 m
4	Isisindo somshini	39 t
I-Clamping Unit
1	Amandla eCembang	760 k
2	Usayizi we-Mold Platen (w × h)	1300 mm x 1500 mm
3	Amapuleti okuvula unhlangothi	I-800 mm - 1800 mm
4	Unhlangothi oluhamba kancane	950 mm
5	Ubukhulu be-Max Mold (w × h)	I-1100 mm × 1700 mm
6	Ubukhulu bokubumba	810 mm-950 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	37 k + 22 kw
2	Ukuthuthwa kwe-Services	200 l / min + 138 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m³ / min
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	70 kw- 80 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-100 mmx2 mm
2	Isikulufa l / d ratio	32 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	180 kg / hr x 2 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	30.2 kw
6	Screw fan Power	0.6 kw
7	Amandla wemoto extruder	90 kw x 2 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-Max Die-PIN	I-450 mm
4	Umthamo we-Accumulator	25 l
5	(Pe) isisindo se-accumulator	18 kg

Izici nezinzuzo

I-Double-Emboning Embonisese Indilinga Bar Center Isikhungo Sokugcina Isilinda ikhanda
● Ukuthola amandla aphezulu okukhiqiza ngokuqanjwa okuhle nokunemba Ezokukhiqiza, ezikwazi ukukhiqiza izingcezu / amahora we-20
● Imiphongolo ekhiqizwa ingadlula ukuhlolwa kwe-3m yehla futhi iphelele un ukufakazela ngencwadi

Izindawo zohlelo lokusebenza

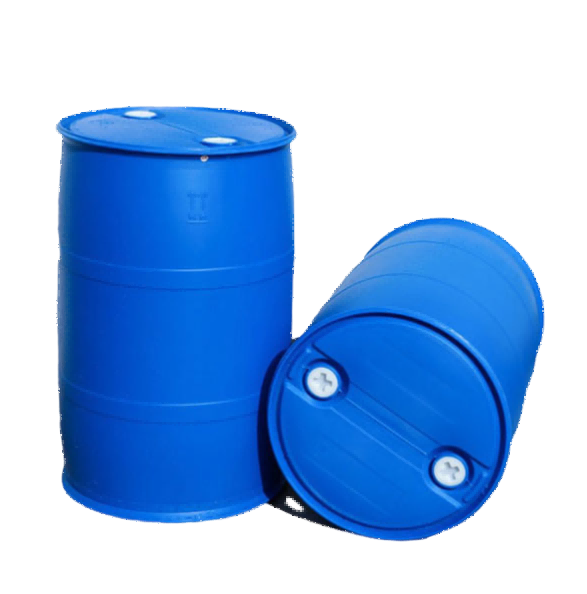

Ungqimba oluphindwe kabili u-220l Right-ring-ring camer Barrel Blow Blow Bowning Machine application

Isisindo se-200l Sherel: 12-15 kg

Material: HMHWHDPE

Ubukhulu: 3.5-4 mm

Lo mshini wokubumba wokubumba amakhemikhali akhethekile wenzelwe ukukhiqizwa okusebenzayo kwemiphongolo engamakhemikhali eluhlaza okwesibhakabhaka. Sisebenzisa indlela evulekile yokuvala evulekile, uhlelo lwe-armique arm Drawbar Clamping System, kanye ne-patent enezinhloso ezimbili, i-Double-bestrow accumulator die ikhanda, ihambisa ukusebenza okuhlukile.

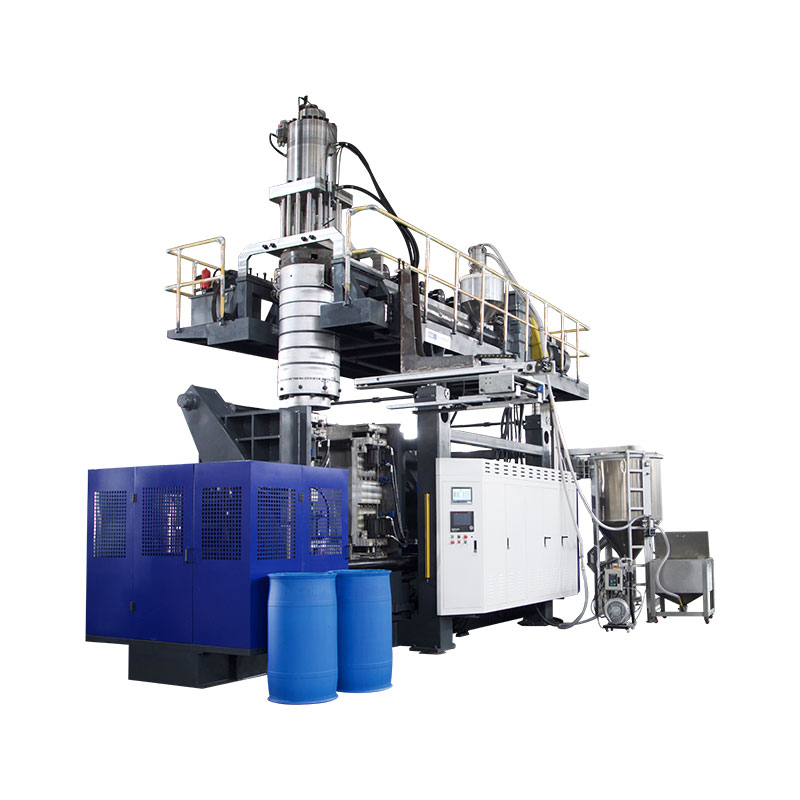

Double layer 220L double-ring chemical barrel blow molding machine
