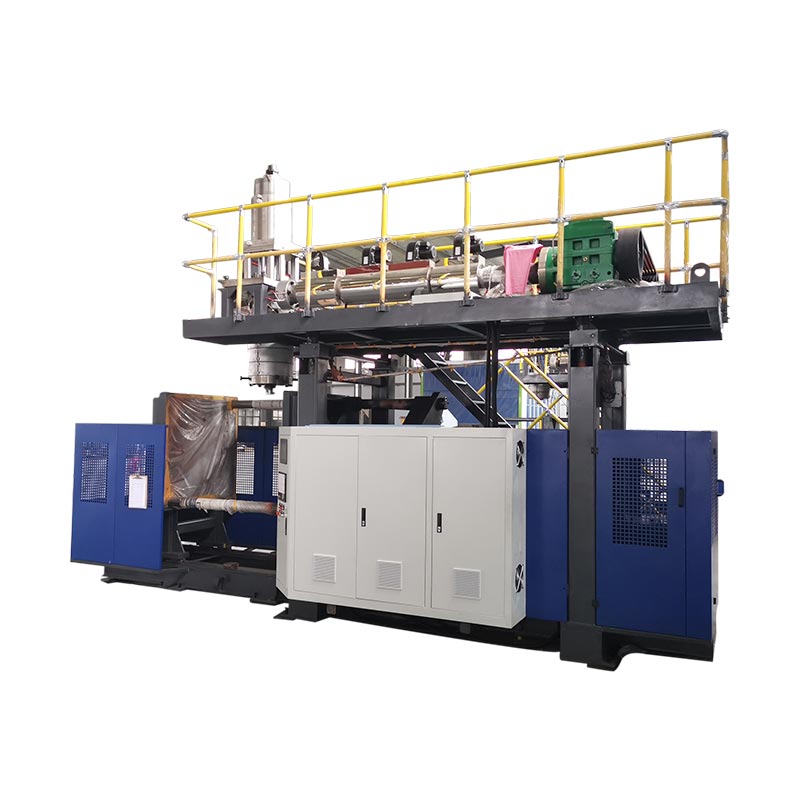

I-30l Station Double station yokubumba umshini wokubumba

Model:KGB100DB

I-KGB100DB iyinhlangano enokulungiswa-i-30l eshibhile esiteshini esingu-30l Sting Blow Solding Machine, ivuselelwa izicelo zomshini wokubumba okuphezulu. Yakhelwe Isidingo Somshini Wezokwenza Ipulasitiki Esiningi Esikhulu Sokuzitelela, Njengama-Jerrycans nezitsha zamakhemikhali, iqinisekisa ikhwalithi eguqukayo kanye nokusebenza kahle.

IVolumu: 30lIsisindo: 23t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

I-KGB100DB ingu-30l esiteshini esivunguliwe esiteshini esisheshayo, i-suite for Lezo zinto ezisheshayo ezinesivinini esikhulu ngokunemba kokulawulwa kokulawula amakhasimende. Hhayi kuphela ukwakheka okujwayelekile, ukwakheka okukhethekile kufanelekile ngokwengeziwe Kule modeli blow umshini wokubumba. Kufaka phakathi ubukhulu be-moog 100 Isilawuli, ingalo ye-robot, kanye nohlelo olungezansi lokushaya, ukuthuthukisa umkhiqizo futhi ikhwalithi yomkhiqizo.

Izici nezinzuzo

Hlanganisa ikhanda ngesiteshi esiphindwe kabili
Indlela yokuvula yokuvula nokuvala okulungisiwe: Ifakwe nge-Double Rie ROD Swessnchrous yokuvala isistimu yokuvuselela isikhunta kanye nomshini wokubumba ophindwe kabili, uqinisekise ukuqondanisa okuqondile nokuzinzile. Isilinda kawoyela sisebenza ngokuqondile ingcindezi yokukhiya okuthembekile kokubumba.
Isitoreji isilinda die series: yakhelwe ukugeleza okubonakalayo okungaguquki kanye nokwakheka komkhiqizo osezingeni eliphakeme.
Umthamo omkhulu: Usekela umthamo omkhulu womkhiqizo we-120l, okwenza kube yinto elungele ukukhiqiza iziqukathi ezinkulu nezingxenye zezimboni.
Uhlelo lwe-Hydraulic servo System: lubonisa ukulawulwa kwe-servo okuthuthukile kwe-hydraulic, ukuletha impendulo yesenzo esisheshayo, ukusebenza kahle kwamandla okuphezulu, kanye nezindleko ezicijile ukusebenza.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB100DB
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	650 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	6.4 M x 6.2 M x 4 M
4	Machine weight	23T
Clamping Unit
1	Clamping force	215 KN
2	Mold platen size(W×H)	750MM×860 MM
3	Platen openingstroke	350 MM -850 MM
4	Platen moving stroke	/
5	Max mold size(W×H)	520 MM ×860 MM
6	Mold thickness	360 MM -420 MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	0.7 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	45 KW - 60 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	160 Kg/hr -200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	22.4 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	22.8 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	5 L
5	(PE)Accumulator weight	3.75 KG
