I-60l ye-accumulator blow umshini wokubumba

Model:KGB90AP

Kwi-KGB90AP, i-60l esebenza kahle ye-60l ishaya ngomshini wokubumba oqukethe ungqimba oluphindwe kabili noma ubuchwepheshe bombala ophindwe kabili. Yenzelwe ngokukhethekile ukubekwa engxenyeni ephindwe kabili kanye nombala we-60l blow wokuhlanganisa imishini yokuhlanganisa, njenge-Toolbox Blow Machines yokuhlanganisa / amathangi okugcina izimboni / amathangi angama-60l, iqinisekisa ukwethenjwa kwesikhathi eside kanye nokonga izindleko.

IVolumu: 60lIsisindo: 15t

Thumela Uphenyo

Incazelo Yomkhiqizo

Umshini wokubumba we-KGB90L we-60l Blow Wlow Polding Machine unama-Double Extrusion System ingalingana nesendlalelo kabili noma izidingo zokukhiqizwa kombala eziphindwe kabili zokunweba umkhiqizo wakhala.
Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi Uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Lo mshini ohlukahlukene ilungele izicelo ezahlukahlukene, kufaka phakathi i-Chemical Drum Blow Ukubumba Izixazululo Zomshini, izinqubo zokukhishwa kweplastiki zokubumba ,.

Ukucacisa

inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB90AP
Ukucacisa
1	Umthamo we-MAX	60 l
2	Okukhiphayo (umjikelezo owomile)	I-500 PC / hr

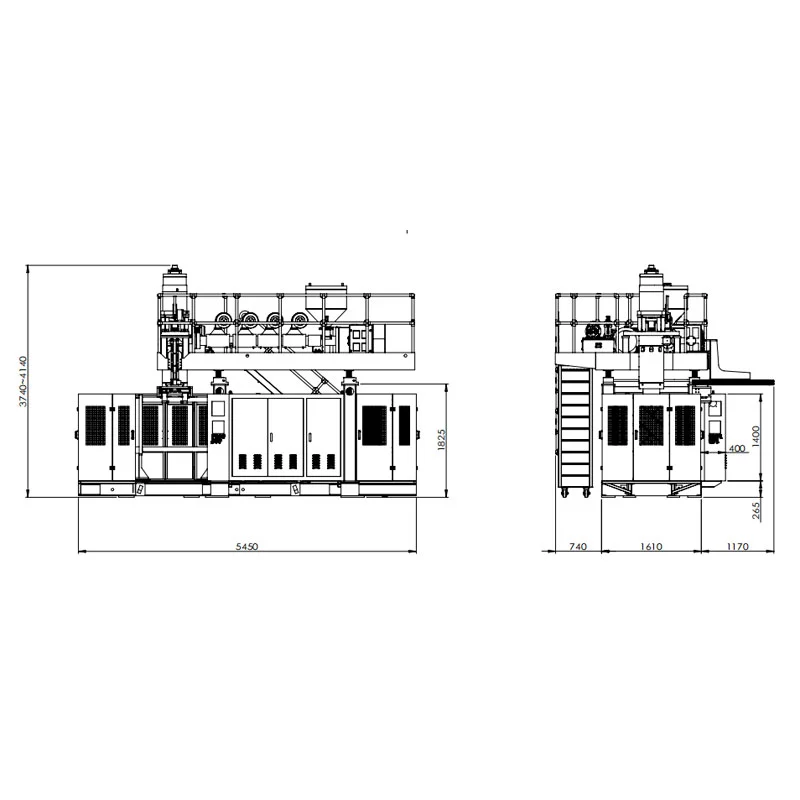

3	I-Machine Dimension (l × w × h × h)	5.45 m x 3.5 m x 4.2 m
4	Isisindo somshini	I-15T
I-Clamping Unit
1	Amandla eCembang	280 kn
2	Usayizi we-Mold Platen (w × h)	960 mm x 980 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-450 mm-1050 mm
4	Unhlangothi oluhamba kancane	500 mm
5	Ubukhulu be-Max Mold (w × h)	700 mm × 980 mm
6	Ubukhulu bokubumba	460 mm -550 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	18.5 kw
2	I-Servo Pump Pumplement	I-150 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	1 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	90 l / min
7	Isilinganiso sokusetshenziswa kwamandla	35 kwha 45 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	2 * 70 mm
2	Isikulufa l / d ratio	24 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	130 KG / HR - 160 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	17.6 kw
6	Isikulufa FANPPOWER	0.5 kw
7	Amandla wemoto extruder	2 * 22 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	26.8 kw
3	Ububanzi be-MaxDie-Pin	320 mm
4	Umthamo we-Accumulator	6.6 l
5	(Pe) isisindo se-accumulator	4.95 kg

Izici nezinzuzo

Le modeli iyindlela yokuvula yokuvula nokuvala okulungisiwe, usebenzisa induku eboshwe kabili Indlela yokuvala yokuvala okuvumelanayo yokuvumelanisa, kanye nengcindezi eqondile yamafutha ukuqumba
Isitoreji isilinda die series
I-Phezulu Volume 60l
I-Fotoolbox efanelekile, njll.
Kusetshenziswa ubuchwepheshe obuhlukile, uhlelo lokuhlanganisa isikhunta, ukubhoboza okukhulu Force, isivinini sokuqina kwesikhunta esisheshayo, umjikelezo womkhiqizo omfushane
