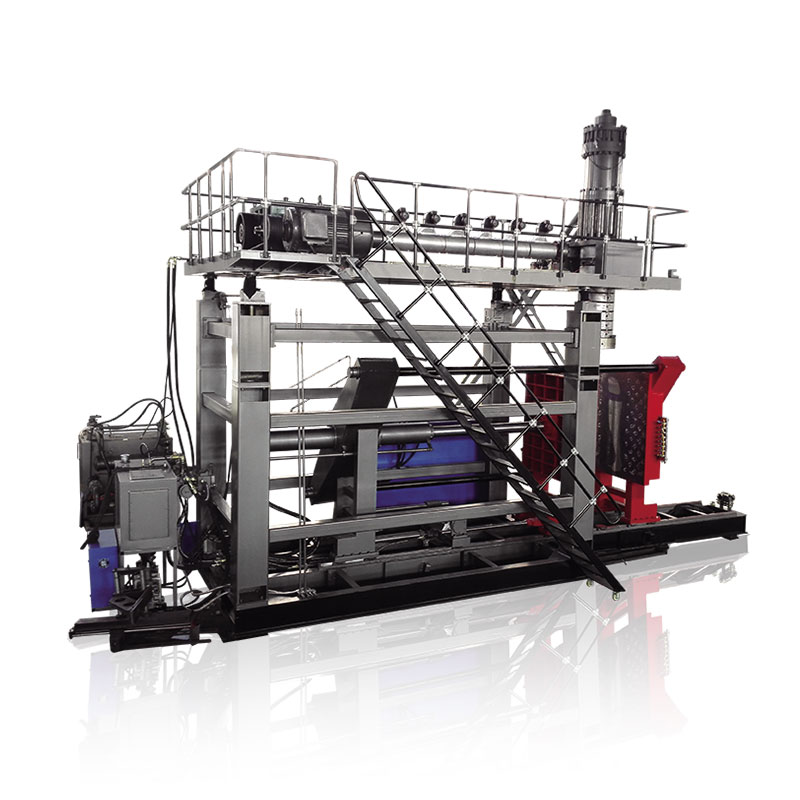

I-1000l IBC Amathangi Amanzi aqongelela umshini wokubumba

Model:KGB1000L- IBC

Zizwa amandla nokuqina kwamathangi amanzi e-KGB1000l IBC aqongelela umshini wokubumba, onesisindo sonke esidlula amathani angama-55 ukunciphisa ukudlidliza nokufuduka. Izinduku ze-Diagonal Double Tie kanye ne-Central-Cylinder Clanghing Clanghing qinisekisa ngisho nokusatshalaliswa kwengcindezi kulo lonke isikhunta, ukuthuthukisa ukunemba komkhiqizo.

IVolumu: 1000lIsisindo: 55t

Thumela Uphenyo

Incazelo Yomkhiqizo

Lawa mathangi amanzi angu-1000l IBC aqongelela umshini wokubumba wokushaya afaka izimiso zobuchwepheshe ezithuthukayo kanye nokukhiqizwa kwengqimbanhlobo kwezindleko ezincishisiwe kanye nokuqina komkhiqizo okuthuthukile. Ilungele ukukhiqiza iziqukathi zamandla amakhulu, kufaka phakathi izicelo zemishini yokubumba amanzi, lo mshini wenzelwe ngqo ama-IBC Drums aze afike ku-1000l, okwenza kufanelekile ukukhiqiza imigqomo yamakhemikhali yamakhemikhali, amathangi amakhulu we-car car, nokuningi. Xhumana nathi namhlanje ukuthola isilinganiso esenziwe ngezifiso futhi uhlole inani lethu lomshini wokubumba amanzi wokuncintisana.

Ukucacisa

Inombolo yomkhiqizo	Indwangu PE, PP, ABS, HMHWDDPE ..	Uhlobo oluvuliwe lokuvala Uchungechunge olukhethekile lomshini
Inombolo yomkhiqizo	Indwangu PE, PP, ABS, HMHWDDPE ..	Imodeli Yomshini: KGS1000L-IBC
Ukucacisa
1	Umthamo we-MAX	1000 l
2	Okukhiphayo (umjikelezo owomile)	150 l

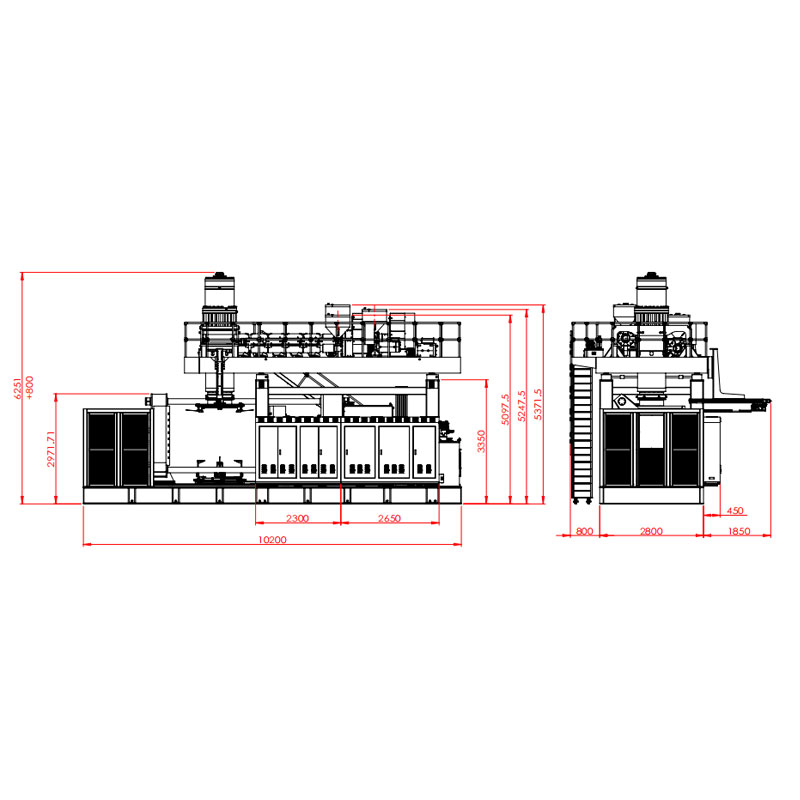

3	I-Machine Dimension (l × w × h × h)	9.5 m x 5.1 m x 6.5 m
4	Isisindo somshini	55 t
I-Clamping Unit
1	Amandla eCembang	1000 kn
2	Usayizi we-Mold Platen (w × h)	I-1800 mm x 1600 mm
3	Amapuleti okuvula unhlangothi	I-1150 mm - 2700 mm
4	Unhlangothi oluhamba kancane	950 mm
5	Ubukhulu be-Max Mold (w × h)	I-1600 mm x 1500 mm
6	Ubukhulu bokubumba	I-1200 mm - 1400 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	25 kw
2	Ukuthuthwa kwe-Services	250 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	2 m³ / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	110 kW - 150 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-100 mm x 2 mm
2	Isikulufa l / d ratio	32 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	180 kg / hr x 2 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	30.2 kw
6	Screw fan Power	0.6 kw
7	Amandla wemoto extruder	90 kw x 2 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-Max Die-PIN	I-450 mm
4	Umthamo we-Accumulator	45 l
5	(Pe) isisindo se-accumulator	33 kg

Izici nezinzuzo

Okokusebenza okuphelele kungafinyelela amathani angaphezu kwama-55, kunciphisa ngokuphumelelayo ukudlidliza kanye nokusuka komshini, kanye nokwenza ngcono ukunemba komkhiqizo nokuqina.
● Ama-Diagonal Double Tie Rods kanye ne-Central-Cylinder Mallinder Mold Classing, ithempulethi icindezelwe ngokulinganayo futhi ayikhubazeki kalula
● Ukukhiqizwa kwamandla amaningi kunciphisa izindleko zokukhiqiza futhi kuthuthukise ukuqina komkhiqizo
● Ilungele ukukhiqizwa kwemikhiqizo emikhulu yepulasitiki efana nemibhoshongo yamanzi, amathangi okugcina, iziqukathi zamakhemikhali, njll.
