I-120L iqongelela umshini wokubumba

Model:KGB100B

Zizwa ukusebenza kahle kwalokhu kuvulwa okuhleliwe nokuvala i-120l buthelela umshini wokubumba wokuvuselela nge-Double Donstar Uhlelo lwe-Hydriac Servo luqinisekisa ukuphendula okusheshayo kanye nokonga amandla, ukwenza kahle ukukhiqizwa.

IVolumu: 120lIsisindo: 18t

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli ejwayelekile ye-KGB100B, ikhanda le-top-tier accumulator lishayele ukubumba umshini, kufaka phakathi isilawuli sogqinsi se-moog 100, ingalo yamarobhothi, nangaphansi Uhlelo lokushaya, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Lo mshini wokubumba we-120l aqongelela Ilungele izinhlelo zokusebenza ezahlukahlukene, kufaka phakathi i-Chemical Drum Blow Polding Izixazululo Zomshini, Izinqubo Zokubumba Umshini Wokubumba Komshini, Nomkhiqizo yemigqomo yamakhemikhali yamakhemikhali, amathangi emoto, amathoyizi, izingxenye ze-auto, traffic Izithiyo, ifenisha yezokwelapha, izinhlelo zokusebenza zemishini yokubumba yetafula, Ama-buoys antantayo, izihlalo namatafula. Ngokukhiqizwa okuphezulu kokubumba okuphezulu Ivolumu ye-120L, ibeka izidingo eziningi ezahlukahlukene, ezitsheni ezincane kuzinhlelo zokusebenza ezinkulu zezimboni.

Ukucacisa

Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB100B
Ukucacisa
1	Umthamo we-MAX	I-120L
2	Okukhiphayo (umjikelezo owomile)	I-320 PC / hr

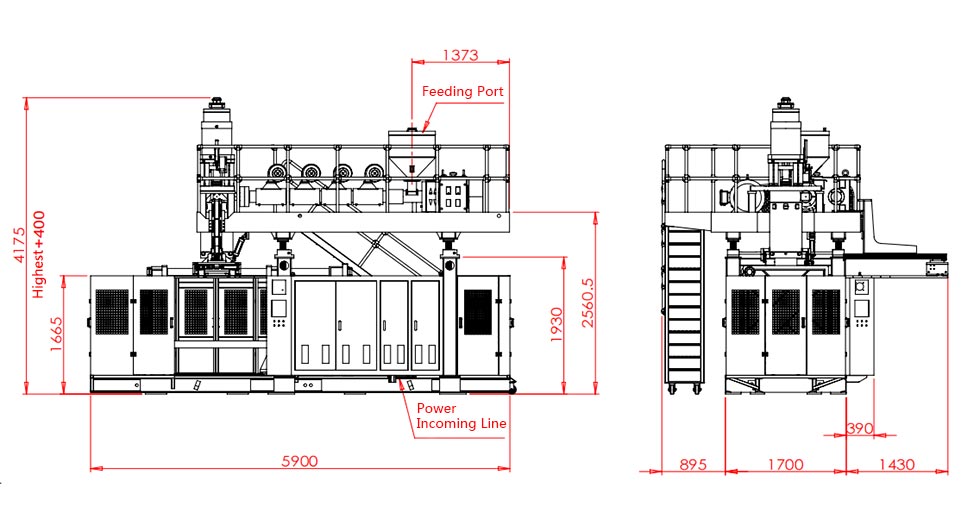

3	I-Machine Dimension (l × w × h × h)	5.9 m x 3.8 m x 4.6 m
4	Isisindo somshini	18 t
I-Clamping Unit
1	Amandla eCembang	440 kno
2	Usayizi we-Mold Platen (w × h)	I-1200 mm x1200 mm
3	Amapuleti okuvula unhlangothi	500 mm-1400 mm
4	Unhlangothi oluhamba kancane	I-600 mm
5	Ubukhulu be-Max Mold (w × h)	920 mmx1200 mm
6	Ubukhulu bokubumba	510 mm-600 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	25 kw
2	Ukuthuthwa kwe-Services	200 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	52-60 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-100 mm
2	Isikulufa l / d ratio	24 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	160 kg / hr -200 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	22.4 kw
6	Screw fan Power	0.6 kw
7	Amandla wemoto extruder	55 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	35 kw
3	Ububanzi be-Max Die-PIN	I-450 mm
4	Umthamo we-Accumulator	12 (20) l
5	(Pe) isisindo se-accumulator	9 (15) kg

Izici nezinzuzo

Indlela yokuvula yokuvula nokuvala okulungisiwe: ifakwe i-Double Rie Rod Synchrous yokuvala isistimu yokuvuselela isikhunta, uqinisekise ukuqondanisa okuqondile nokuzinzile. Isilinda kawoyela sisebenza ngokuqondile ingcindezi yokukhiya okuthembekile kokubumba.
Isitoreji isilinda die series: yakhelwe ukugeleza okubonakalayo okungaguquki kanye nokwakheka komkhiqizo osezingeni eliphakeme.
Umthamo omkhulu: Usekela umthamo omkhulu womkhiqizo we-120l, okwenza kube yinto elungele ukukhiqiza iziqukathi ezinkulu nezingxenye zezimboni.
Uhlelo lwe-Hydraulic servo System: lubonisa ukulawulwa kwe-servo okuthuthukile kwe-hydraulic, ukuletha impendulo yesenzo esisheshayo, ukusebenza kahle kwamandla okuphezulu, kanye nezindleko ezicijile ukusebenza.

Izindawo zohlelo lokusebenza

I-Max 120l Cherts Barrel / Izingxenye ze-Auto / Isithiyo Somgwaqo / Float / Toys / Ifenisha

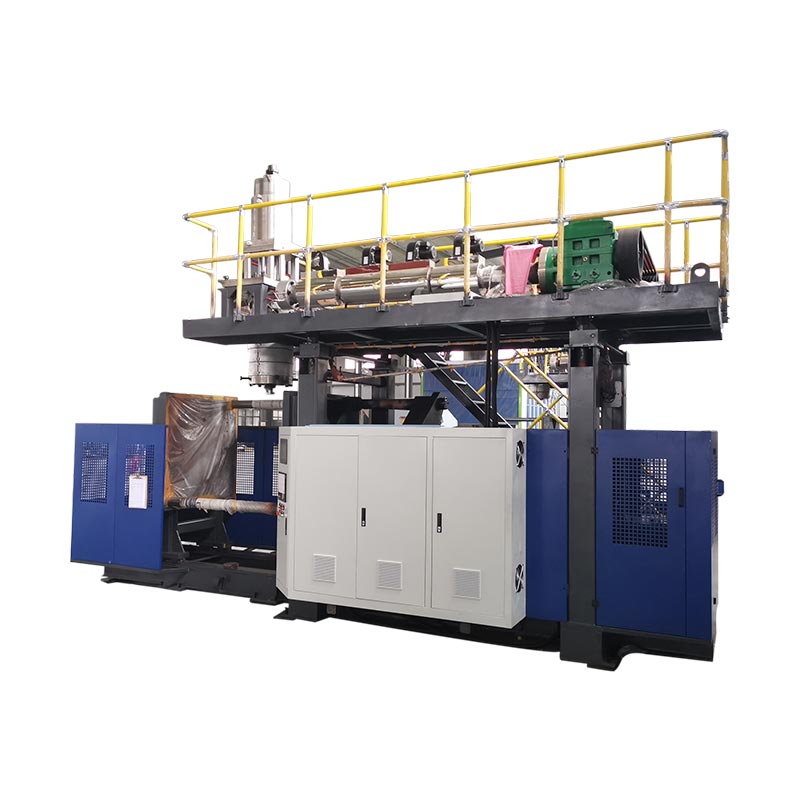

120L accumulate blow molding machine

Umthandi

1. Malini imodeli yokuqongelela imodeli yokubumba?

Ngenxa yokwehluka komkhiqizo, umshini ungaba ne-robot arm / system yokushaya phansi / idivaysi ye-seal, njll. Sicela wabelane ngokucaciswa komkhiqizo wakho, bese sinikeza isixazululo senkomba.

2. Ngingayikhetha kanjani imodeli efanele?

Ngamabhodlela ajwayelekile / imigqomo njll. Mane uqinisekise ivolumu le-Max lomshini. Eminye imikhiqizo ekhethekile, isidingo cabanga nge platen / ukukhishwa / amandla njll, sicela uxhumane nathi ukuze uthole ikhambi elifanele.

3. Qhathanisa nolunye uhlobo lomkhiqizo, kungani ngikhetha umshini wokubumba we-Kisole?

I-Kingle yabandakanyeka ekubumbeni okushayayo kusukela ngo-2008, okuhlangenwe nakho kwethu kungasekela amakhasimende amasha ukusungula ngokushesha imigqa yokukhiqiza futhi afinyelele ukubuyiselwa kwemali. Eminyakeni engama-20 edlule, senziwe njalo futhi sakhiwe ngokuzimela, sizuze ukukhiqizwa okuzinzile nokusebenzayo.

4. Yini isiqinisekiso sakho sekhwalithi yomshini?

Sizoba imishini yokuhlola ephezulu kakhulu ngaphambi kokulethwa ukuze uqiniseke ukuthi ukukhiqizwa kuzinzile. Futhi unikeze iwaranti yeminyaka eyi-1 selokhu kwafika umshini ufike efektri yakho. Uma kudingeka, futhi kunganikeza isitifiketi se-SGS.

5. Ngabe uhlinzeka ngokuqeqeshwa njalo kokulungiswa noma ukuxilongwa okukude kwephutha?

Yebo, asinawo amafayela wokulungiswa kuphela kepha futhi sinamadokhumenti / amavidiyo wezobuchwepheshe ukuxazulula izinkinga.
Uhlelo lomshini lunohlelo lwe-alamu, olungasiza ukude ezinkingeni zokuxazulula inkinga

6. Iyini insizakalo yakho yokuthengisa ngemuva kokuthengisa?

Singathumela unjiniyela efektri yakho ukukusiza ukufaka nokuqeqesha, izakhi eziphambili ziza nesikhathi sewaranti yonyaka ongu-1-2, nezingxenye ezintekenteke zingathathelwa indawo mahhala kungakapheli unyaka owodwa.
