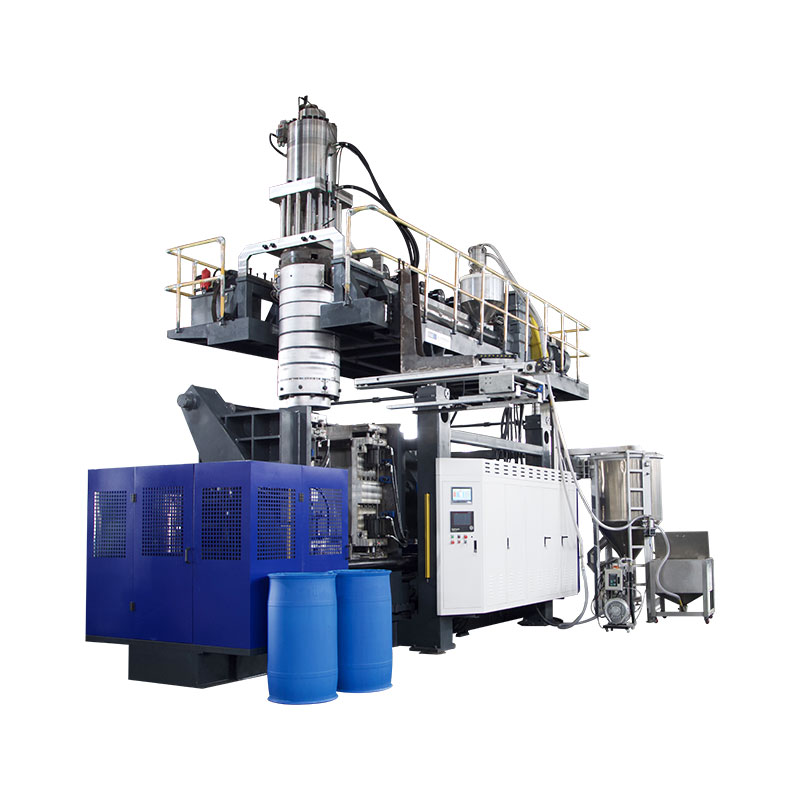

I-220 litre grum drum blow blow umshini wokubumba

Model:KGB200L

I-KGB200L ingukucaciswa okunembile - i-Engine-litre plastic blow blow machine yokubumba, eyenzelwe ukusetshenziswa komshini we-Blue Chemical Crum-Ukwenza izigqoko. Kwizidingo zemishini yokubumba engu-200 litre 7 Ingadlula ukuhlolwa kwamamitha ama-3 ukuthola isitifiketi se-UN.

IVolumu: 250lIsisindo: 36t

Thumela Uphenyo

Incazelo Yomkhiqizo

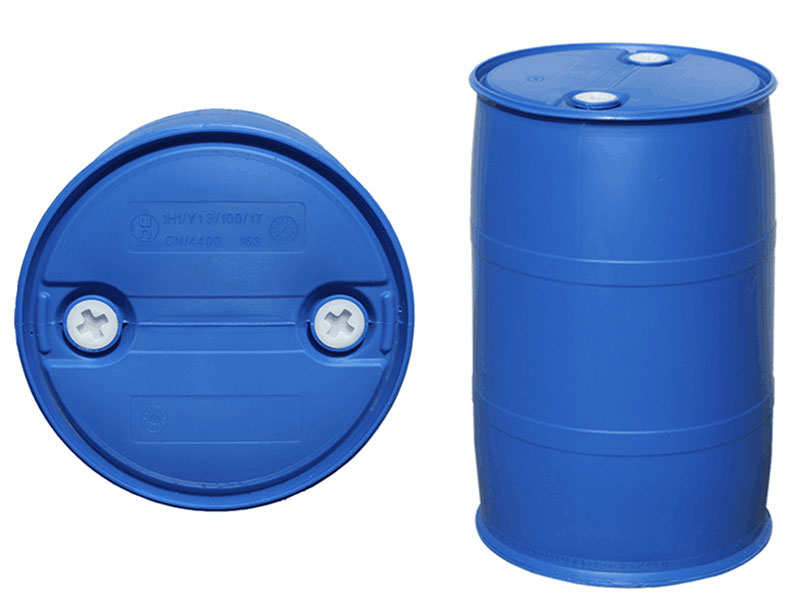

Ikhanda le-accumulator lifa, lihlanganiswe neyunithi esebenza ngokusebenza okuphezulu, Ihambisa imiphumela ekhethekile. Lo mshini wokubumba wepulasitiki wamalitha wama-220 wepulasitiki wokuhlanganisa ufaka umlawuli wezinsuku ze-moog 100, ingalo ye-robot, nokuvunguza okuphansi uhlelo lokusebenza kahle. Izigubhu ezikhiqizwayo zihlangabezana nekhwalithi eqinile amazinga, okubandakanya ukudlula ukuhlolwa kwamamitha amathathu nokuthola un isitifiketi.

Ukucacisa

inombolo yomkhiqizo	I-Material PE, PP, ABS, HMWWDPE ...	Uchungechunge olukhethekile lomshini
inombolo yomkhiqizo	I-Material PE, PP, ABS, HMWWDPE ...	Imodeli Yomshini: KGB200L
Ukucacisa
1	Umthamo we-MAX	I-250l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	9.5 m x 4.1 m × 6.5 m
4	Isisindo somshini	I-36t
I-Clamping Unit
1	Amandla eCembang	760 k
2	Usayizi we-Mold Platen (w × h)	1300 mm x1500 mm
3	Amapuleti okuvula ngaphandle kwempondo	800 mm -1800 mm
4	Unhlangothi oluhamba kancane	950 mm
5	Ubukhulu be-Max Mold (w × h)	I-1100 mm × 1700 mm
6	Ubukhulu bokubumba	810 mm - 950 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	37 k + 22 kw
2	I-Servo Pump Pumplement	200 l / min +138 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	70 KW - 80 kW
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-120 mm
2	Isikulufa l / d ratio	32 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	320 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	30.2 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	110 (132) kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-MaxDie-Pin	I-450 mm
4	Umthamo we-Accumulator	25 l
5	(Pe) isisindo se-accumulator	18 kg

Izici nezinzuzo

I-Double-Emboning Embonise I-Bar Center Isikhungo Sokugcina Isilinda Isilinda
Ukuthola amandla aphezulu okukhiqiza ngokuklanywa okwenziwe kahle kanye nokukhiqiza okunembile, okukwazi ukukhiqiza izicucu / ihora
