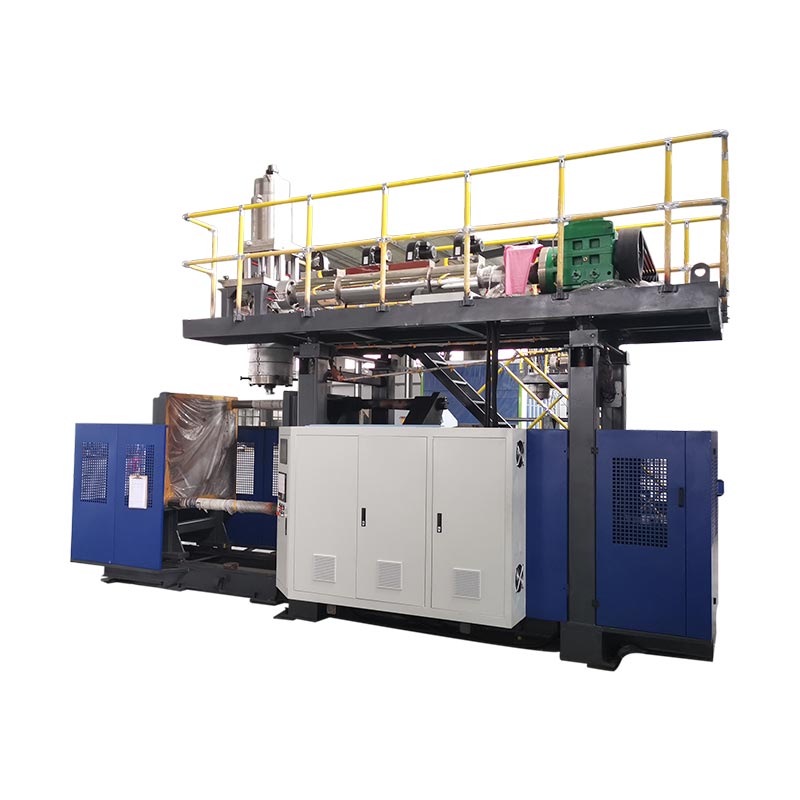

I-160L iqongelela umshini wokubumba

Model:KGB110A

Lo mshini wokubumba we-160l uqongelela umphakeli we-Kisulle ovela kumphakeli we-Kisulle, okubandakanya i-Double Donstar Ralkring kanye ne-Oyili Cylinder Direct Locking Mold, uletha ukusebenza okuphezulu kanye nokusebenza kahle. Ifakwe uhlelo lwe-Hydralic Servo lokuphendula okusheshayo kanye nokonga amandla, lo mshini udlula ekukhiqizeni imikhiqizo ehlukahlukene, ezitsheni ezincane kuya kumanani amakhulu.

IVolumu: 120lIsisindo: 22t

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli ejwayelekile ye-KGB110A, ikhanda eliholayo le-accumulator lishayele umshini wokubumba, Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi Uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Le Kisole High quality 160l inqola umshini wokuzibandakanya wokuzibandakanya ilungele izinhlelo ezahlukahlukene zokusebenza, kufaka phakathi ukuqhakaza kwamakhemikhali Izixazululo Zomshini, izinqubo zokukhishwa kweplastiki zokubumba, ukuntanta Izicelo zomshini wokubumba komshini, kanye nokukhiqizwa kwamakhekhe amakhemikhali Imiphongolo, amathangi ezimoto, izinhlelo zokutholwa kwamathoyizi wokubumba izisetshenziswa, izingxenye ze-auto, Izithiyo zethrafikhi, ifenisha yezokwelapha, ama-buoys antantayo, izihlalo namatafula.

Ukucacisa

inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB110A
Ukucacisa
1	Umthamo we-MAX	120 l
2	Okukhiphayo (umjikelezo owomile)	I-320 PC / hr
3	I-Machine Dimension (l × w × h × h)	6.6 m x 4.2 m x 5.2 m
4	Isisindo somshini	-Kuthi
I-Clamping Unit
1	Amandla eCembang	760 k
2	Usayizi we-Mold Platen (w × h)	I-1100 mm × 1400 mm
3	Amapuleti okuvula unhlangothi	I-600 mm - 1600 mm
4	Unhlangothi oluhamba kancane	I-600 mm
5	Ubukhulu be-Max Mold (w × h)	I-1000 mmx1400 mm
6	Ubukhulu bokubumba	I-610 mm -750 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	25 kw
2	Ukuthuthwa kwe-Services	200 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m³ / min
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	52 kW -60 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	110 mm
2	Isikulufa l / d ratio	25 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	160 KG / HR-200 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	24 kw
6	Screw fan Power	0.6 kw
7	Amandla wemoto extruder	75 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	35 kw
3	Ububanzi be-Max Die-PIN	450 (600) mm
4	Umthamo we-Accumulator	12 (20) l
5	(Pe) isisindo se-accumulator	9 (15) kg

Izici nezinzuzo

Ukumba okujulile kumandla wezobuchwepheshe kunganikeza izixazululo zomkhiqizo eziphezulu eziphezulu zamakhasimende aphishekela ukusebenza kwezindleko; Futhi ingakha ungqimba oluphindwe kabili noma izinhlaka ezihlomile ezinobungcweti ngobungcweti obukhulu bezandla.
Inika amandla imisebenzi ebalulekile yomshini wokubumba we-110a blow wokubumba ngohlelo lwamandla oluqinile noluthembekile lwe-hydraulic. Ukudluliselwa kwamandla okuqhubekayo nokuzinzile kuqinisekisa ukuvulwa okudala nokuvalwa okunamandla kokubumba, ukusebenziseka okubushelelezi nokusebenzayo kwemisebenzi yokukhiqiza isikhathi eside ne-high-incity ukukhiqiza, imishini ingagcina imikhiqizo esezingeni eliphakeme kakhulu.

Izindawo zohlelo lokusebenza

Isitsha se-MAX 160L Isitsha / IBarrel Bucket / Drum; ifenisha; ukuntanta; I-Pontoon; ithoyizi; izingxenye ze-auto; Isithiyo sethrafikhi; isidlaliso sengane
