I-30l inqola umshini wokubumba ovunguzayo

Model:KGB80A

Lo mshini wokubumba ama-30l aqongelela ubumba ubeka i-robist doust dod rod ukuvumelanisa kanye nokuhlobisa uwoyela okuqondiswa yingcindezelo yokukhiya umfutho wokusebenza kahle. Ifakwe ngohlelo lwe-Hydralic Servo lokuphendula okusheshayo kanye nokonga amandla, lo mshini udlula ekukhiqizeni iziqukathi ezahlukahlukene, kusuka kumanani amancane afinyelela kumanani amakhulu wemishini yokubumba engu-20 litre.

IVolumu: 30lIsisindo: 12t

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli ye-KGBB80A ejwayelekile ifaka umlawuli wezinhlanga eziyi-100, ingalo ye-robot, kanye nohlelo olungezansi lokuqhuma, okunikeza ukuguquguquka kwezicelo ezahlukahlukene, kufaka phakathi i-Chemical Drum Blow Yokubumba Umshini Wokubumba kanye namakhemikhali eJerrycan Blow Ukubumbana Machine Solutions. Ixhasa izinketho ezizodwa nezinhlobonhlobo, kanye nokuvalwa kwe-auto nokubuka amadivayisi we-strip ngokusebenza okuthuthukile. Lo mshini wokubumba we-30l wokuqongelela we-blow ufanelekile ukukhiqiza imiphongolo yokufaka amakhemikhali, ukufaka amabhakede okufaka, amathangi amanzi angaphandle, amabhokisi eqhwa, amathangi ezimoto, amabhodlela okufafaza, nokuningi.

Ukucacisa

Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Uhlobo oluvuliwe lokuvala Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB80A
Ukucacisa
1	Umthamo we-MAX	30 l
2	Okukhiphayo (umjikelezo owomile)	I-650 PC / hr

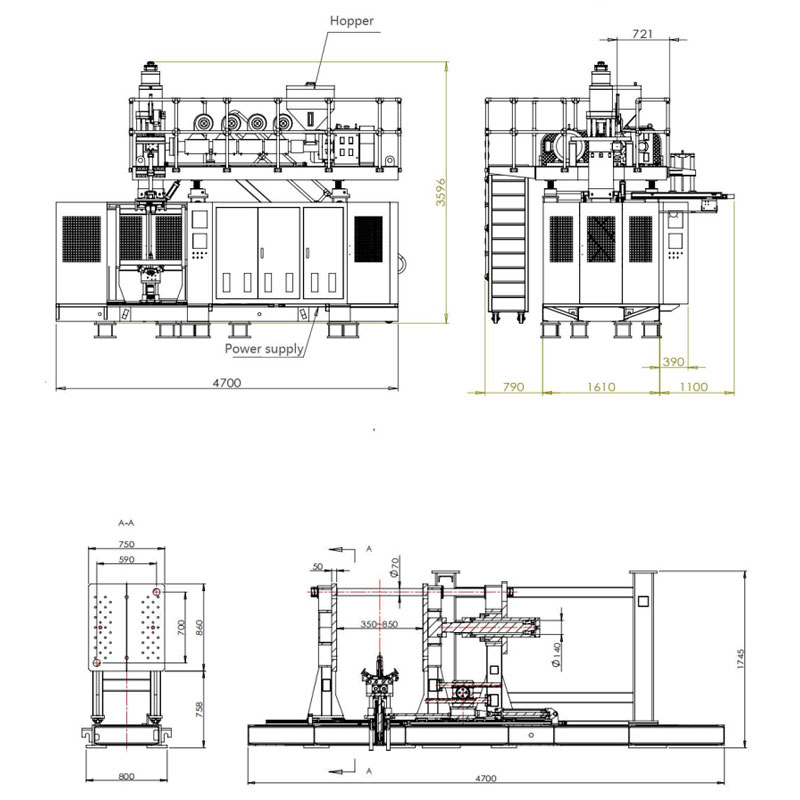

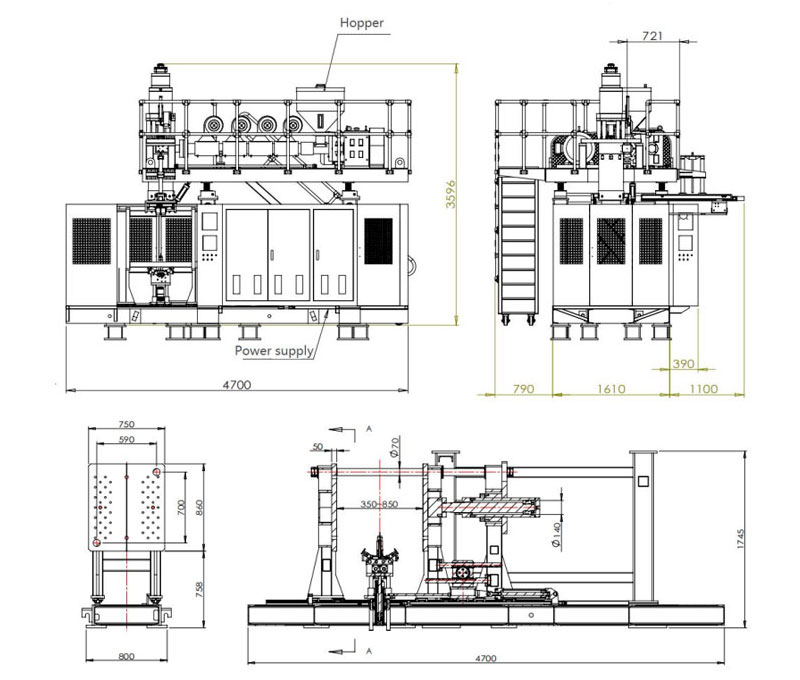

3	I-Machine Dimension (l × w × h × h)	4.7 m x 3.5 m x 4 m
4	Isisindo somshini	12 t
I-Clamping Unit
1	Amandla eCembang	215 k
2	Usayizi we-Mold Platen (w × h)	I-750 mm x 860 mm
3	Amapuleti okuvula unhlangothi	350 mm-850 mm
4	Unhlangothi oluhamba kancane	370 mm
5	(×) usayizi wokubumba max (w × h)	520 mm x 860 mm
6	Ubukhulu bokubumba	I-360 mm-420 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	11 kw
2	Ukuthuthwa kwe-Services	80 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	0.7 m³ / min
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	70 l / min
7	Isilinganiso sokusetshenziswa kwamandla	27 KWS 37 cw
Iyunithi ye-extruder
1	Isikulufa ububanzi	80 mm
2	Isikulufa l / d ratio	24 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	120 KG / HR-140 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	15.6 kw
6	Screw fan Power	0.5 kw
7	Amandla wemoto extruder	37 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	22.8 kw
3	Ububanzi be-Max Die-PIN	220 mm
4	Umthamo we-Accumulator	5 l
5	(Pe) isisindo se-accumulator	3.75 kg

Izici nezinzuzo

Le modeli ukuvulwa nokuvala okulungisiwe nokuvala isikhunta, kusetshenziswa i-Double Rood Rod Synchrous Meding Mechanism, kanye nengcindezelo eqondile yamafutha ekhiya isikhunta
● Isitoreji isilinda die uchungechunge lwekhanda
● IVolumu ephezulu 30L
● Ilungele imigqomo yamakhemikhali yamakhemikhali, amathoyizi asayizi aphakathi nendawo, izingxenye ze-auto izingxenye, iziqukathi zamanzi, amabhokisi ethuluzi kanye nama-spraters, njll.
● Isici esihlukile ukuthi silawulwa uhlelo lwe-hydraulic servo ukufezekisa impendulo yesenzo esisheshayo kanye nokusebenza kwamandla okuphezulu.

Izindawo zohlelo lokusebenza

Imiphongolo yokufaka amakhemikhali, amathoyizi asayizi aphakathi nendawo, amapayipi e-auto, iziqukathi zamanzi, amabhokisi ethuluzi kanye nama-spraters, njll.

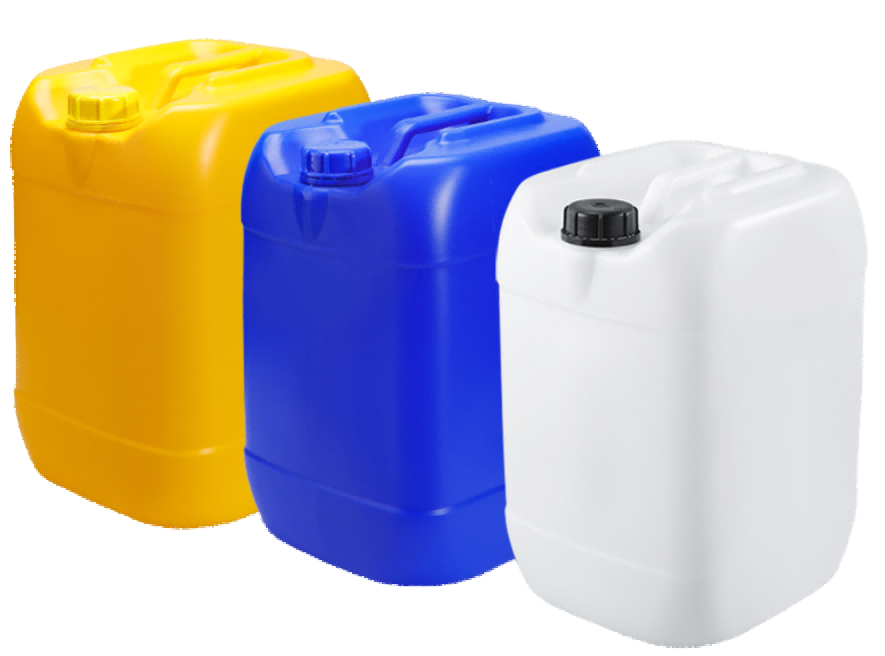

I-30l Chemical Cheming Blow Blow Ukuhlanganisa Isicelo Sokuhlanganisa Umshini

Isisindo se-30l Sarrel: 1.5-1.7 kg

Indwangu: HDPE

Ubukhulu: 2,5-3 mm

Ikhasimende lidinga ukushaya umshini ukukhiqiza imigqomo yamakhemikhali engama-30l ngezinto zokwakha ezinikeza amandla amahle kakhulu, nokuqina ngesikhathi sokuhamba nesitoreji. Ukuhlangabezana nalezi zidingo, i-Kingge yakhetha umshini wokubumba we-KGB80A Blow Blow, okwakuthathwa njengento elungele ukukhiqizwa okuphezulu kanye nekhwalithi yomkhiqizo ophakeme.
