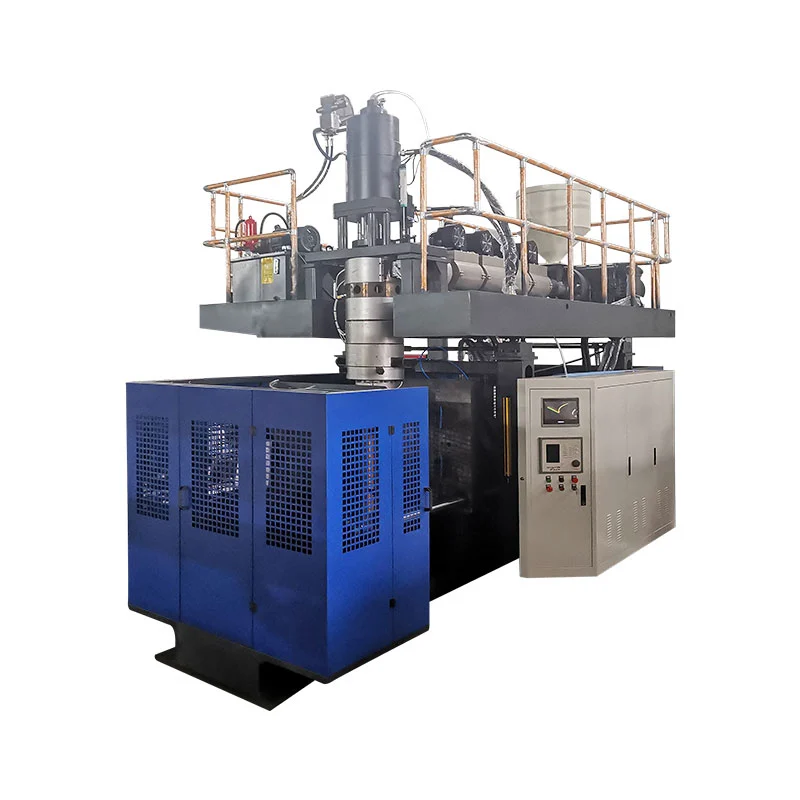

I-60l inqola umshini wokubumba wokushaya

Model:KGB90A

Lokhu kuvula okuvuliwe nokuvala ukushaya umshini, okubandakanya i-Double Dons Rod ukuvumelanisa ukuvumelanisa kanye nesilinda kawoyela Direct Direct Locking Mold, kuhambisa ukusebenza okuphezulu kanye nokusebenza kahle. Ifakwe ngohlelo lwe-Hydralic Servo ukuze izimpendulo ezisheshayo kanye nokonga amandla, le nto engama-60l inqola imishini yokubumba ebunjiweyo ekukhiqizeni imikhiqizo ehlukahlukene, kusuka ezitsheni ezincane kuya ezitsheni ezincane kuya kumanani amakhulu.

IVolumu: 60lIsisindo: 14t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Imodeli ejwayelekile ye-KGB90A, inhloko ephambili yenhlangano eshayayo, ifaka umlawuli wokubumba we-MOOG, i-Robot ARM, kanye nohlelo olushisayo, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Lo mshini wokubumba we-60l accuring ilungele izinhlelo ezahlukahlukene zokusebenza, kufaka phakathi izinqubo zomshini wamakhemikhali wokubumba, kanye nokukhiqizwa kwamabhakede okufaka amakhemikhali, amathangi amanzi angaphandle, amathangi emoto, amathoyizi, nezithiyo zethrafikhi.

Izici nezinzuzo

Le modeli iyindlela yokuvula yokuvula nokuvala okulungisiwe, usebenzisa i-Double Rie Rod Swentnchrous Mechanism, kanye nesilinda kawoyela ngokuqondile
● Isitoreji isilinda die uchungechunge lwekhanda
● IVolumu Ephezulu 60l 60l
● Ilungele imigqomo yokufaka amakhemikhali, amathoyizi amakhulu, ama-abs carfins, njll.
● Ukusebenzisa ubuchwepheshe obuhlukile, uhlelo lokugcina ukubopha isikhunta, amandla amakhulu okubopha, isivinini sokuqina kwesikhunta esisheshayo, umjikelezo womkhiqizo omfushane

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

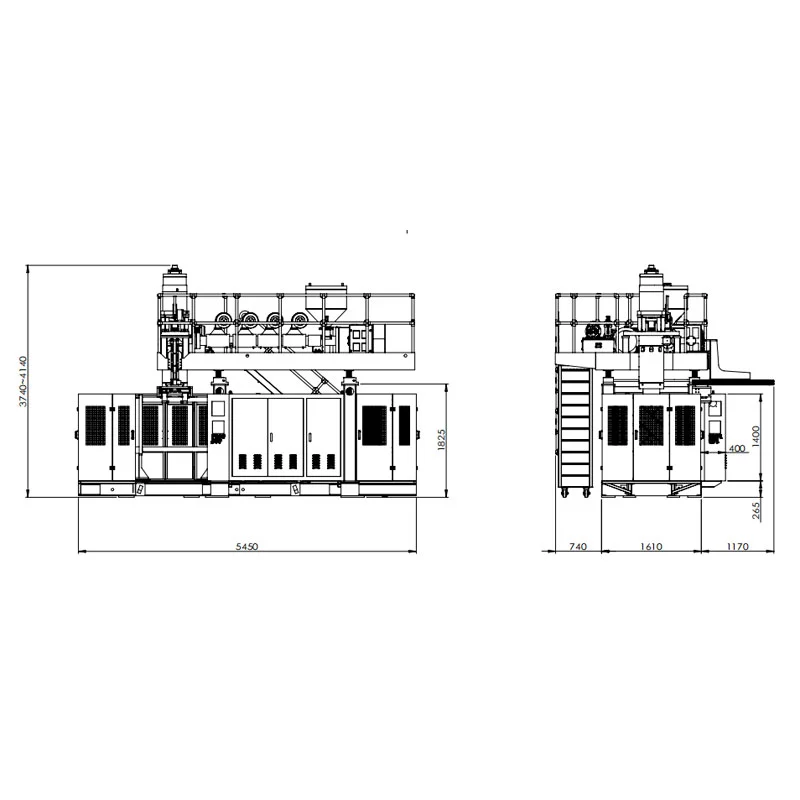

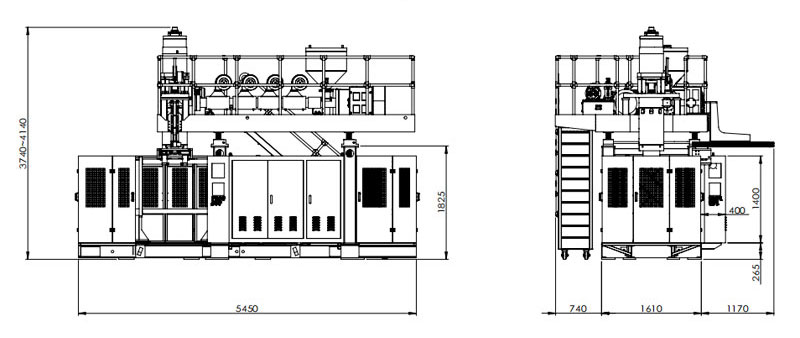

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
