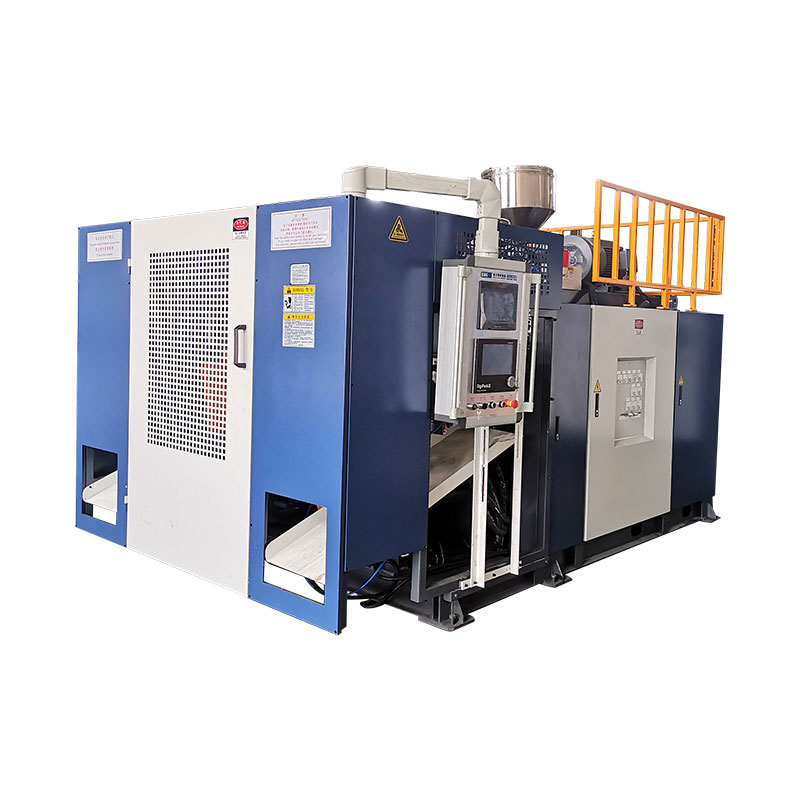

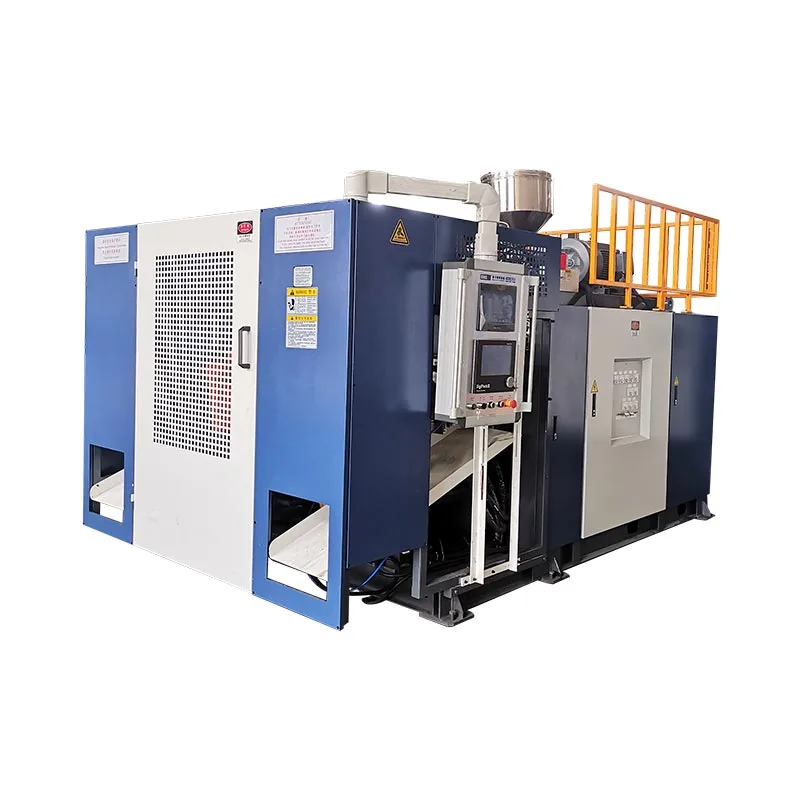

I-5l Station Double slow yokubumba umshini wokubumba

Model:KGB5D

Khulisa ukukhiqizwa kwakho nge-5l Double Station Blow Machine yokubumba. Lo mshini wokusebenza okuphezulu unikeza ukucushwa okuguqukayo, kufaka phakathi ukusetha kwekhanda okungu-2, 3, noma okungu-4, ukwamukela uhla olubanzi lwamasayizi wezitsha.

IVolumu: 5LIsisindo: 5.2T

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Kusuka kumabhotela amunca ezitsheni ezinkulu ezi-5l, lo mshini wokubumba ophindwe ka-5l ukukhiqizwa okusebenzayo kanye nekhwalithi engaguquki. Ilungele izinhlelo ezahlukahlukene, kufaka phakathi iphakheji yokuhlanza i-laundrry blow yokubumba izixazululo zokubumba, it Ihambisa okukhishwa okuhlukile futhi kwandise ukubuya kwakho ekutshalweni kwemali.

Izici nezinzuzo

● Ukuguqulwa kwesikhunta esiteshini kabili, kusetshenziswa i-buffer throttle valve yesikhunta sokushintsha, okusebenzayo futhi okuzinzile
● Ifomu leNhloko YeNhloko YeNhloko Yesikhungo Sokudla
● Uhlelo lokulawula ngogesi lusebenzisa ukulawulwa kwe-MITTUBUBISHI SPC, kanye nezinkinobho ezizimele ngesandla ezizimele zenza lula ukulungiswa nokulungiswa.
● Ivolumu yomkhiqizo ephezulu ingu-5L, okuyimishini yokubumba ekhethwayo yokukhiqizwa kwesisindo esingaphansi kuka-2-5l.
● Ngokusho kwezici, kungahlukaniswa ungqimba olulodwa, ungqimba oluphindwe kabili, ungqimba ezintathu, umugqa osobala, njll.
● Uhlelo lwe-hydraulic lamukela umklamo ohlukile, ukusebenza kahle okuphezulu nesivinini esisheshayo

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
