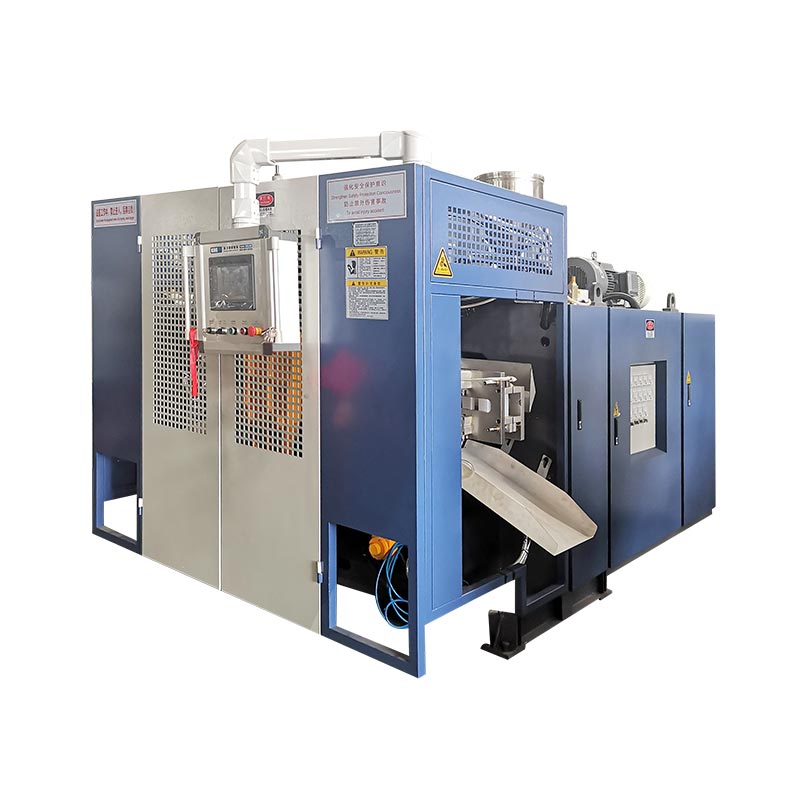

2l isiteshi esiseduze nesiteshi sokuqhuma kwesiteshi sokubumba

Model:KGB2D

Khulisa ukukhiqizwa kwakho ngekhwalithi yethu ephakeme ye-2l Double extration extration blow umshini wokubumba. Yakhelwe iziqukathi eziphezulu ze-2l, lolu hlelo oluguquguqukayo luvumelaniselela ngaphandle komthungo ukukhiqiza imikhiqizo ehlukahlukene.

IVolumu: 2LIsisindo: 4.5t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Shintshela kalula ukucushwa kwekhanda okungu-2, 3, noma okungu-4 ukulungiselela amavolumu amancane, okwenza kube kuhle ngezicelo ezahlukahlukene. Ukusuka kumabhodlela e-shampoo ku-Milk Bottle Blow Blow Machine Machine Machine, Lo mshini wokuqhafaza osheshayo wesiteshi esingu-2l ophindwe kabili unikezela ngekhwalithi engaguquki kanye nokukhipha okuhlukile. Hlola intengo yethu yepulasitiki yokuncintisana yebhodlela lokuncintisana futhi uvule amandla okuthola inzuzo eyengeziwe.

Izici nezinzuzo

Uhlelo lokulawula elekthronikhi oluthuthukisiwe lungabhekwa njengo- "Brain Brain" wokusebenza, oluhlomele ngokulawulwa kwe-MITTUBUBISH PLC, ngezinqubo ezenziwa ngokuqondile ezenzakalelayo kanye nekhono lokukhipha imiyalelo eyinkimbinkimbi. Ngasikhathi sinye, ukwakheka okucabangayo kwezinkinobho ezizimele ezibukwayo kuvumela abahlinzeki ukuthi baqale ngokushesha futhi balinganise kalula amapharamitha ahlukahlukene lapho bebhekene nezimo ezihlukile noma izidingo zokulungiswa okuncane nganoma yisiphi isikhathi, futhi bazuze ukusebenza komshini womuntu nganoma yisiphi isikhathi.
Izici ezihlangene nezisebenzayo zigxile ekukhiqizweni kwesilinganiso esincane seziqukathi ezincane naphakathi eziphakathi kwe-2l nangaphansi. Idizayini yomzimba elungiselelwe ifinyelela ukusebenza kahle kakhulu endaweni ekhawulelwe, ithatha indawo encane, kulula ukuyibeka, futhi ivumelanise ngokuphelele ekunikezelweni kwezakhiwo ezahlukahlukene zokukhiqiza. Noma ngabe kuyinto yokusebenzela encane noma ifektri enkulu, ingalawulwa kalula, ihlinzeka ngezixazululo ezifanele zokukhiqiza zamabhizinisi osayizi abahlukahlukene.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
