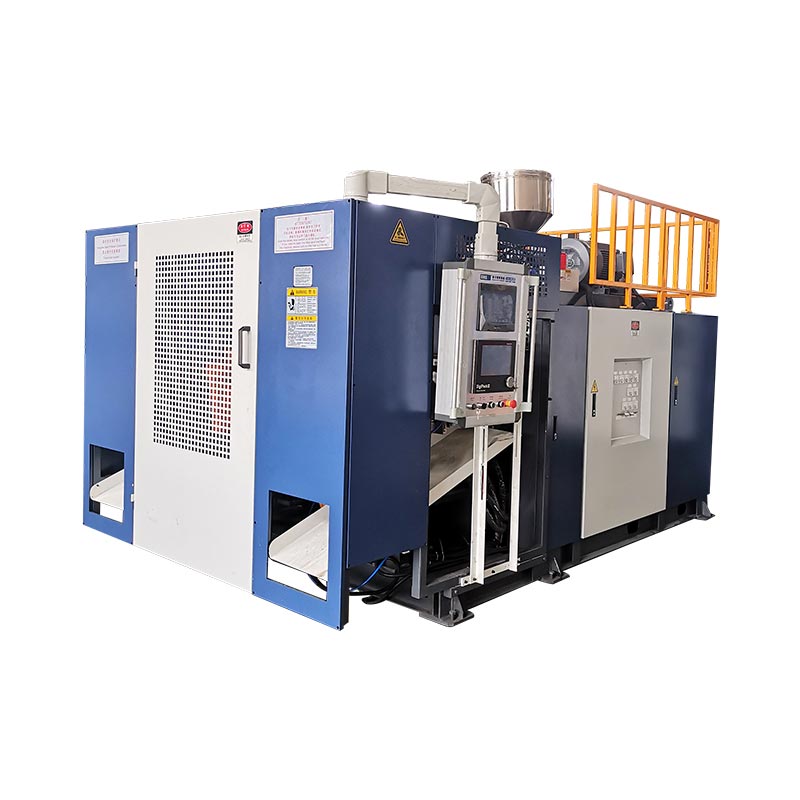

I-5l esiteshini esisodwa isitetweni sokubumba umshini wokubumba

Model:KGB5L

Izwa ukuguquguquka nokusebenza kahle kwesiteshi sethu esiseduze nesiteshi sokubumba okuqhubekayo. Yakhelwe iziqukathi ezifika ku-5L, lesi siteshi esisodwa esingu-5l Blow Solding Machine sinikezela ukucushwa okwenziwe ngezifiso, kufaka phakathi inketho yomshini wokuzinikezela we-2 Cavity Blow wokuzinikezela, ukufeza izidingo zakho ezithile zokukhiqiza.

IVolumu: 5LIsisindo: 3.0t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Ukuthi ufuna isiteshi esizinikezele esingu-5l esizinikezele sokubumba ukusetha noma ukudinga ukuzivumelanisa nezimo ekuguquleni izimfuno zemakethe, lo mshini unikeza ukuguquguquka okungalingani kanye nokusebenza kahle. Xhumana nathi namuhla ukuhlola amanani ethu okuncintisana futhi uthole ukuthi lo mshini ungaphakamisa kanjani amakhono akho okukhiqiza.

Izici nezinzuzo

● Indlela eyodwa yokuguqula isiteshi sokuguqukela kwesikhunta, ifakwe ngokunemba kwe-buffer thwefle valve ukuqinisekisa imisebenzi ebushelelezi futhi esebenza kahle yokuguqula isikhunta.
● Ikhanda die lenzelwe uhlelo lokudla oluphakathi, ukulungiselela ukusatshalaliswa kwezinto ezibonakalayo zekhwalithi yomkhiqizo ethuthukisiwe.
● Uhlelo lokulawula lwe-elekthronikhi oluthuthukisiwe lunikwa amandla yi-MITTUBUBISHI PLC, futhi luza nezinkinobho ezizimele ezibukwayo, ukuvumela abahlinzeki ukuthi benze ukulungisa okusheshayo nokulungile kanye nezinguquko kalula.
● Ngomthamo omkhulu womkhiqizo we-5L, ibeka njengokukhetha okuphezulu kokukhiqizwa kwevolumu ephansi yeziqukathi ezisukela ku-2l kuya ku-5l.
● Ngokwezici zomkhiqizo, inikeza izinketho eziguquguqukayo kufaka phakathi ungqimba olulodwa, ungqimba oluphindwe kabili, izakhiwo ezintathu, kanye nokuhlukahluka okusobala, ukuhlukahluka okusobala ukufeza izidingo ezihlukahlukene zemakethe.
● Uhlelo lweHydraulic lubonisa ukwahlukanisa, ukuletha ukusebenza okuphezulu kanye nesivinini sokuphendula okusheshayo, ukukhulisa kahle ukusebenza kahle kokukhiqiza.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
