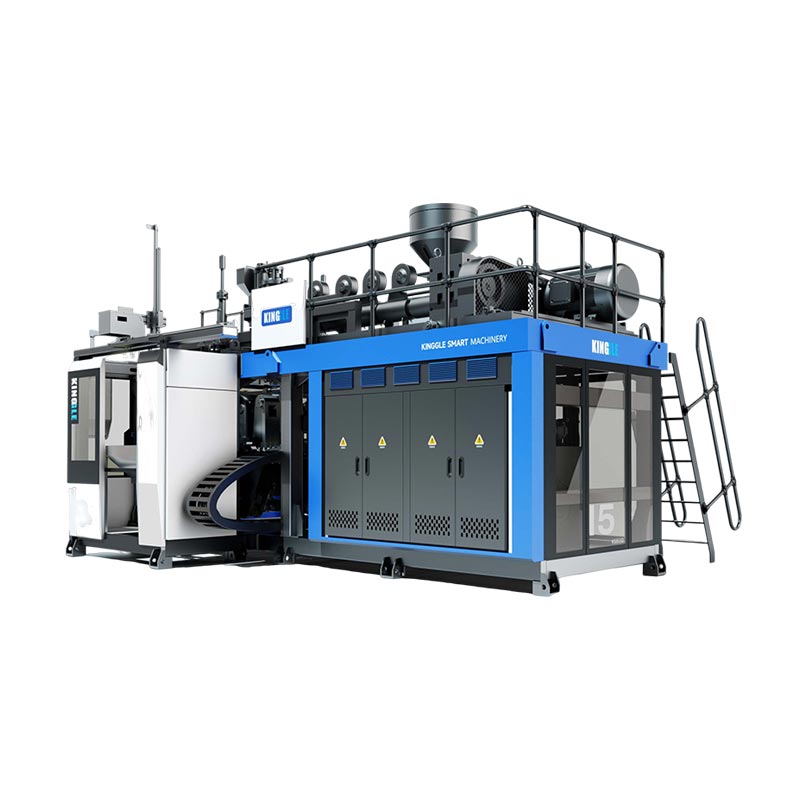

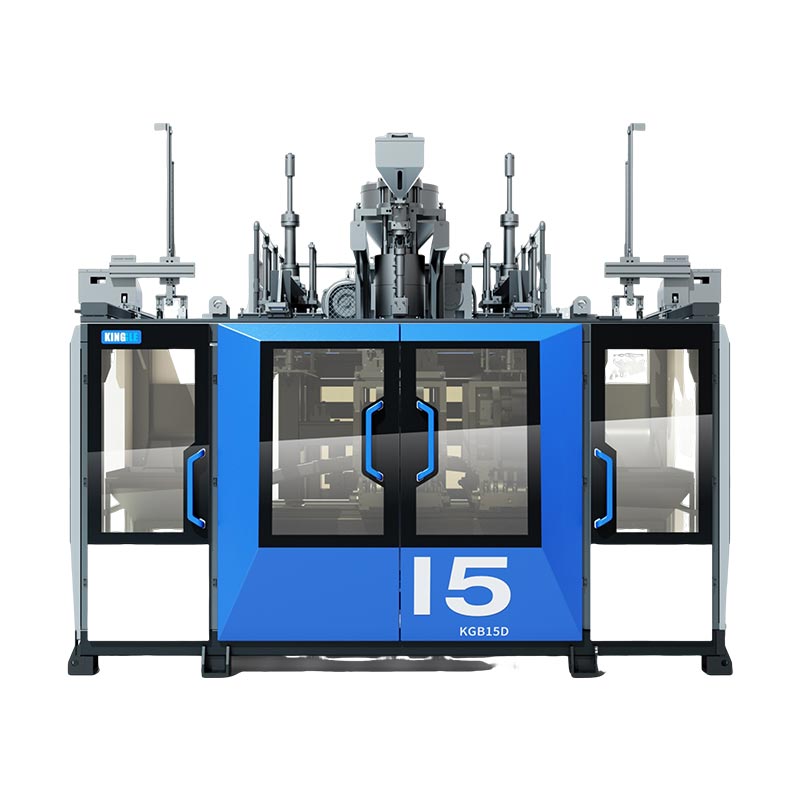

I-15l Station Double Stiw Blow Ukuhlanganisa Umshini Wokubumba

Model:KGB15D

Khulisa ukukhiqizwa kwakho nge-Double-Station yethu eqhubekayo yokuqhuma komshini wokubumba, yenzelwe iziqukathi ezifika ku-15l. Lo mshini wokusebenzisa okuphezulu we-15l we-15l Blow Blow Boilding unikeza ukucushwa okuguqukayo, kufaka phakathi ukusetha kwekhanda okungu-2, 3, noma okungu-4, ukwamukela uhla olubanzi lwamasayizi wezitsha.

IVolumu: 15lIsisindo: 12.5t

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukusuka kumabhomu amancane-ebhomuni ezitsheni ezinkulu ze-15l, kufaka phakathi izicelo zemishini yokubumba yepulasitiki, lo mshini wokubumba ophindwe ka-15l ovuthayo uqinisekisa ukukhiqizwa okusebenzayo kanye nekhwalithi engaguquki. Ilungele izinhlelo zokusebenza ezahlukahlukene, kufaka phakathi izixazululo zomshini wamakhemikhali zansuku zonke zokubumba, njenge-shampoo, okokuhlanza izingubo, kanye nezimonyo, kuhambisa umphumela ohlukile futhi kwandise ukubuyiselwa kwakho ekutshalweni kwemali.

Ukucacisa

inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB15D
Ukucacisa
1	Umthamo we-MAX	IsiNgisi
2	Okukhiphayo (umjikelezo owomile)	I-450x2 PC / hr
3	I-Machine Dimension (l × w × h × h)	4.8m x2.9 m x2.8 m
4	Isisindo somshini	12.5 t
I-Clamping Unit
1	Amandla eCembang	165 kn
2	Usayizi we-Mold Platen (w × h)	500 mm x 550 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-280 mm - 680 mm
4	Unhlangothi oluhamba kancane	I-600 mm
5	Ubukhulu be-Max Mold (w × h)	580 mm × 550 mm
6	Ubukhulu bokubumba	I-300 mm - 380 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	18.5kw
2	I-Servo Pump Pumplement	130 l / min
3	I-Blowprestrure	0.6 MPA
4	Ukusetshenziswa komoya komoya	1.1 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.2-0.3 MPA
6	Ukusetshenziswa kwamanzi	110 l / min
7	Isilinganiso sokusetshenziswa kwamandla	25 kw-34 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	90 mm
2	Isikulufa l / d ratio	25 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	120 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	16 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	45 kw
Die ikhanda
1	Inani lezingxenye zokushisa	3 * 8 Zone
2	Ukushisa Amandla	6.5 kw
3	Ububanzi be-MaxDie-Pin	220 mm
4	Ibanga le-2Centrener lekhanda eliphindwe kabili	240-280mm
5	2mtmax die-pindiameter	I-150mm

Izici nezinzuzo

Ukusebenza kwesiteshi esiphindwe kabili, ukukhushulwa okuvumelanisiwe kwenqubo yokukhiqiza, kufinyeze kakhulu umjikelezo wokukhiqiza weziqukathi ezingama-30l, ucishe waphinda kabili umthamo wokukhiqiza uma uqhathaniswa nesiteshi esisodwa.
Ifakwe nge-Precision enokucaciswa okubukwayo insiza, i-buffer thvent valve yokulawula okuqondile kokubumba, ukuguqulwa okusheshayo kokubumba, isikhathi esifushane sokulungisa amaphutha, isilinganiso esiphansi sokulimala, siqinisekise ukukhiqizwa okuzinzile.
I-MITTUBISHI PLC Ukulawula Okuyinhloko, uhlelo lwangaphambi kokusetha kokulungiswa okuqondile kwamapharamitha wokubumba, izinkinobho ezibukwayo zabasebenza ukuze ulinganise njengoba kudingeka ukuxhumana komshini womuntu.
Singakhiqiza iziqukathi ze-15l nge-lineling-ungqimba, ungqimba oluphindwe kabili, olunezintambo ezintathu, nezintambo ezibonakalayo njengoba zidingeka, zilungele izidingo zokupakisha ezimbonini eziningi ezinjengamakhemikhali, ukudla, kanye nemithi.
