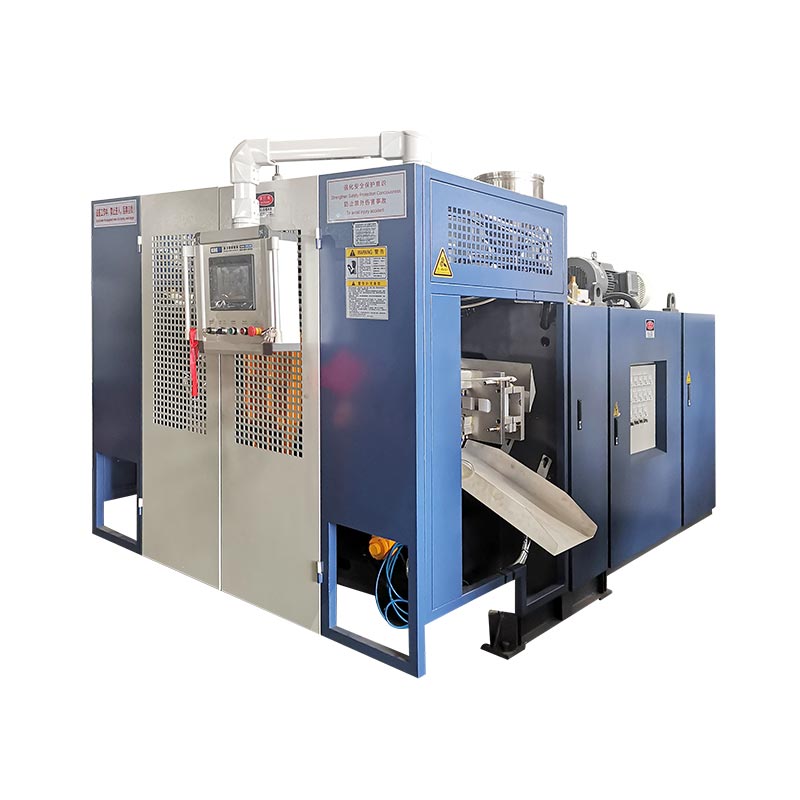

2l esiteshini esisodwa sokuqhuma kwesiteshi sokubumba

Model:KGB2L

Lesi siteshi esisodwa se-2l sishayelwa isiteshi sokubumba, esifanele ukukhiqizwa kwesitsha se-max 2l, kuguquguqukayo kakhulu. Inikeza inketho yokushintshela ekuhlelweni kwekhanda okungu-2, 3, noma okungu-4 okuningi, ukuvumela ukuthi kwamukele ukukhiqizwa kokukhiqizwa kwebhodlela le-100ml-1 kusetshenziswa imishini emincane yokubumba.

IVolumu: 2LIsisindo: 2.5t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Lokhu kuguquguquka okukhulu kakhulu kukhulisa okukhipha nsuku zonke, okwenza kube yisixazululo esifanelekile sabakhiqizi abafuna ukukhulisa umkhiqizo ngenkathi begcina ikhwalithi yomkhiqizo ephakeme. Sebenzisa lesi siteshi esisodwa se-2l Blow Ukuvuselela Umshini wokukhiqiza ukuze ukhiqize amaphakethe ebhodlela we-shampoo, okokuhlanza izingubo, izimonyo, imikhiqizo yokuhlanza indlu, kanye noketshezi lokuhlanza indlu. Ngemiqulu emikhulu, cabanga ngebhodlela lethu le-5l noma le-15l blow yokubumba ngezinketho eziningi zokufa zekhanda.

Izici nezinzuzo

Isiteshi esisodwa isimemezelo sokuguqula indlela yokuguqulwa kwesikhunta, esifakwe nge-buffer buffer throttle valve ukuqinisekisa imisebenzi ebushelelezi futhi esebenza kahle yokuguqula isikhunta.
● Ikhanda die lenzelwe uhlelo lokudla oluphakathi, ukulungiselela ukusatshalaliswa kwezinto ezibonakalayo zekhwalithi yomkhiqizo ethuthukisiwe.
● Uhlelo lokulawula lwe-elekthronikhi oluthuthukisiwe lunikwa amandla yi-MITTUBUBISHI PLC, futhi luza nezinkinobho ezizimele ezibukwayo, ukuvumela abahlinzeki ukuthi benze ukulungisa okusheshayo nokulungile kanye nezinguquko kalula.
● Njengoba inomthamo omkhulu womkhiqizo we-2L, ibeka njengokukhetha okuphezulu kokukhiqizwa okuphansi kweziqukathi ezisukela ku-50ml kuya ku-2l.
● Ngokwezici zomkhiqizo, inikeza izinketho eziguquguqukayo kufaka phakathi ungqimba olulodwa, ungqimba oluphindwe kabili, izakhiwo ezintathu, kanye nokuhlukahluka okusobala, ukuhlukahluka okusobala ukufeza izidingo ezihlukahlukene zemakethe.
● Uhlelo lweHydraulic lubonisa ukwahlukanisa, ukuletha ukusebenza okuphezulu kanye nesivinini sokuphendula okusheshayo, ukukhulisa kahle ukusebenza kahle kokukhiqiza.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
