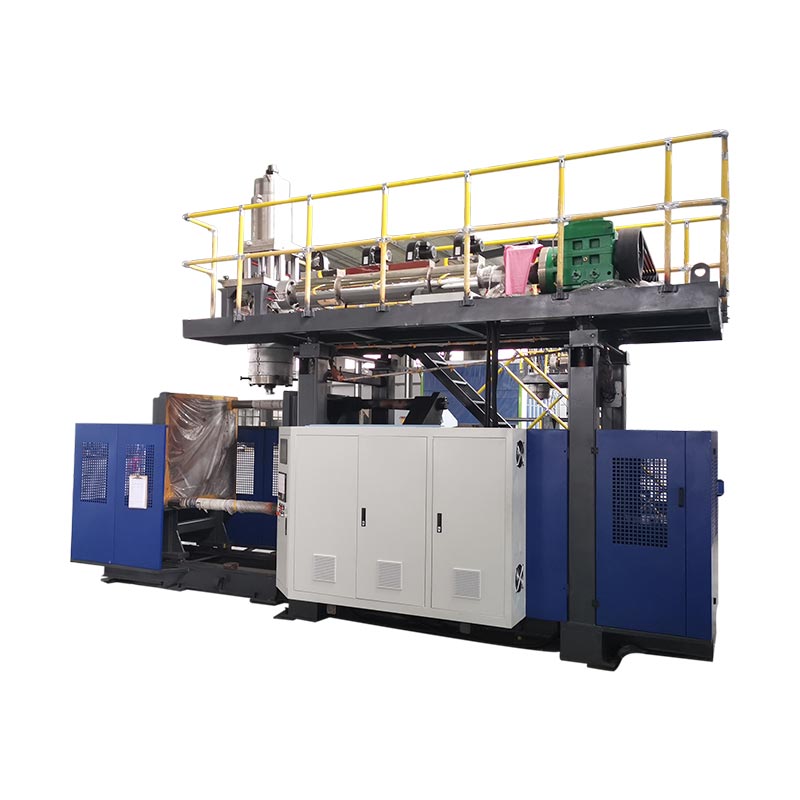

I-250L iqongelela umshini wokubumba

Model:KGB120E

Lokhu kuvula okuvuliwe nokuvala ukushaya umshini, okubandakanya i-Double Dons Rod ukuvumelanisa ukuvumelanisa kanye nesilinda kawoyela Direct Direct Locking Mold, kuhambisa ukusebenza okuphezulu kanye nokusebenza kahle. Ifakwe ohlelweni lwe-Hydralic Servo ukuze izimpendulo ezisheshayo kanye nokonga amandla, le 250l inqola imishini yokubumba evuthayo ekukhiqizeni imikhiqizo ehlukahlukene, kusuka ezitsheni ezincane kuya ezitsheni ezincane kuya kumanani amancane.

IVolumu: 250lIsisindo: 28t

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli ejwayelekile ye-KGB120E, ikhanda eliholayo le-accumulator lishayele umshini wokubumba, Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi. Lo mshini wokubuyisela oguquguqukayo we-blow Ngezicelo ezahlukahlukene, kufaka phakathi umshini wokubumba amakhemikhali izixazululo, ama-pallets epulasitiki ashaya izinqubo zomshini wokubumba, amanzi epulasitiki Izicelo zomshini wokuhlanganisa ithangi, kanye nokukhiqizwa kwe-200-220L Imiphongolo eyindandatho ephindwe kabili, amathangi ezimoto, izingxenye ze-auto, izithiyo zomgwaqo, umuthi Ifenisha, ama-buoys antantayo, izihlalo, amatafula, ama-pallets, izikebhe, nokuningi.

Ukucacisa

Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
Inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB120E
Ukucacisa
1	Umthamo we-MAX	250 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr

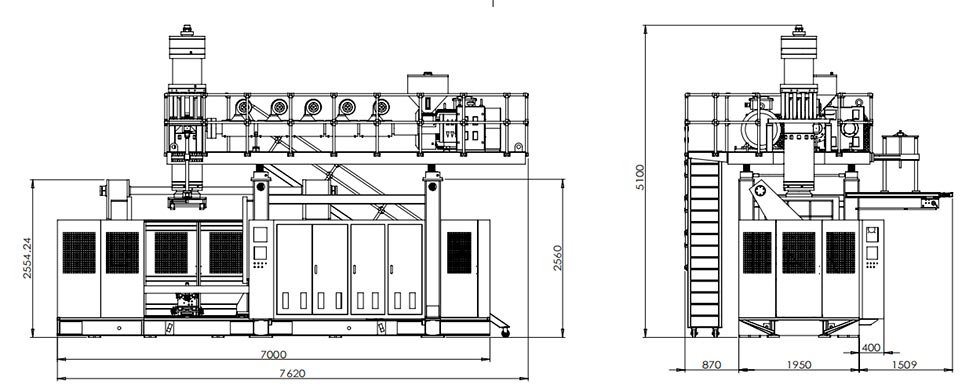

3	I-Machine Dimension (l × w × h × h)	7.6 m x 4.3 m x5.5 m
4	Isisindo somshini	28 t
I-Clamping Unit
1	Amandla eCembang	800 Kn-1200 kn
2	Usayizi we-Mold Platen (w × h)	1300 mm x 1400mm
3	Amapuleti okuvula unhlangothi	800 mm-1800 mm
4	Unhlangothi oluhamba kancane	I-700 mm
5	Ubukhulu be-Max Mold (w × h)	I-1100 mm x 1700 mm
6	Ubukhulu bokubumba	I-810 mm - 900 mm
Ubuqhwaga
1	Amandla we-servo oyela mpompo motor	37 kw
2	Ukuthuthwa kwe-Services	250 l / min
3	Ukucindezela kwe-Blow	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m³ / min
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	80 kW -90 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-120 mm
2	Isikulufa l / d ratio	25 l / d
3	I-HDPEMELTITTITITITITE capacit ye-HDPE	250 KG / HR-320 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	30.2 kw
6	Screw fan Power	0.6 kw
7	Amandla wemoto extruder	90 (110) kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-Max Die-PIN	I-600 (700) mm
4	Umthamo we-Accumulator	20 (25) l
5	(Pe) isisindo se-accumulator	15 (18) kg

Izici nezinzuzo

Isetshenziselwe ukukhiqiza imikhiqizo emikhakheni ehlukahlukene. Noma ngabe iziqukathi ezinkulu zokugqwala ezivinjezelwa embonini yamakhemikhali, emabhodleleni angenawo amazinga aqinile wokuhlanzeka embonini yezidlo, noma emabhokisini apakisha avela emikhiqizweni yansuku zonke yamakhemikhali, kungalawulwa ngokunembile ukuze kuhlangane nezidingo ezihlukahlukene zemakethe.
Inqubo yokudla yamukele ubuchwepheshe obunqenqemeni futhi ilungiselelwe ngokususelwa kwizici zokukhiqizwa kwamandla aphezulu komshini wokubumba we-120e Blow. Lawula ngokunembile isilinganiso sokugeleza kanye nokusatshalaliswa kwezinto ezivuthiwe ukuqinisekisa ubukhulu bodonga olufanayo ngesikhathi sokubumba imikhiqizo yevolumu enkulu ye-Ultra, nokuqeda amandla ekhwalithi yomkhiqizo, bese kuqeda amandla ekhwalithi okubangelwa ukondliwa okungalingani.

Izindawo zohlelo lokusebenza

I-Max 220L-ring evulekile evulekile ephezulu noma evaliwe isitsha sekhemikhali / isigubhu / umgqomo; Izingxenye ezizenzakalelayo / umgoqo wethrafikhi / ukuntanta / amathoyizi / ifenisha / ipallet
