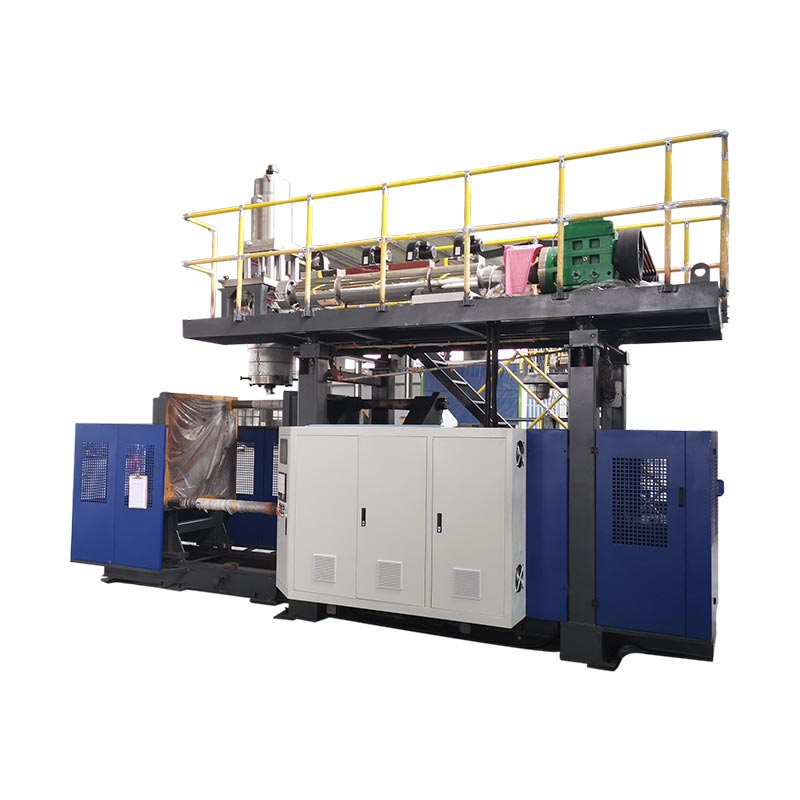

Umshini wokubumba wepulasitiki oyindilinga

Model:KGS120Y

I-Kinggle KGS120Y iyitafula eliqinile lepulasitiki lepulasitiki eliqinile elihlanganiswe ne-Round Table Blow Machine Machine Machine. Ihlangabezana ngokugcwele itafula lepulasitiki noma ipulasitiki yokukhishwa kweplasitiki blow yokuhlanganisa umshini wokuhlanganisa, inikeza amadizayini abekwe ngokwezifiso nekhwalithi ephezulu, ikunikeza umphetho wokuncintisana.

IVolumu: 2000lIsisindo: 42t

Thumela Uphenyo

Incazelo Yomkhiqizo

I-KGS 120Y 183 Plastic Round Table Blow Umshini wokubumba wokuhlanganisa ukudala iphaneli yepulasitiki Thayipha umkhiqizo, njengeThebula / Indlu Yendlu njll. Umshini ungahle uhlangane nazo lezo zidingo ezikhethekile zokukhiqiza umkhiqizo, ngokukhiqizwa okusheshayo okuyisivinini sokugcina izindleko zeyunithi.
Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi.

Ukucacisa

inombolo yomkhiqizo	I-Material HDPE ...	Isilinda ka-Mold Ukuvala uwoyela (amasilinda amathathu)
inombolo yomkhiqizo	I-Material HDPE ...	Imodeli yomshini: kgs120z
Ukucacisa
1	Umthamo we-MAX	2000 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	8.3 m × 6.8 m
4	Isisindo somshini	42 t
I-Clamping Unit
1	Amandla eCembang	1800 kn
2	Usayizi we-Mold Platen (w × h)	I-1600 mm × 1900 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-600 mm-1800 mm
4	Unhlangothi oluhamba kancane	I-700 mm
5	Ubukhulu be-Max Mold (w × h)	I-1650 mm × 19000 mm
6	Ubukhulu bokubumba	I-830mm - 1030 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	25 kw
2	I-Servo Pump Pumplement	200 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	2 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	110 kW -130 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-120 mm
2	Isikulufa l / d ratio	30 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	I-350 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	32.5 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	132 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-MaxDie-Pin	800 (950) mm
4	Umthamo we-Accumulator	45 (60) l
5	(Pe) isisindo se-accumulator	33 (45) kg

Izici nezinzuzo

Isetshenziselwe ukukhiqiza imikhiqizo emikhakheni ehlukahlukene. Noma ngabe iziqukathi ezinkulu zokugqwala ezivinjezelwa embonini yamakhemikhali, emabhodleleni angenawo amazinga aqinile wokuhlanzeka embonini yezidlo, noma emabhokisini apakisha avela emikhiqizweni yansuku zonke yamakhemikhali, kungalawulwa ngokunembile ukuze kuhlangane nezidingo ezihlukahlukene zemakethe.
Inqubo yokudla yamukele ubuchwepheshe obunqenqemeni futhi ilungiselelwe ngokususelwa kwizici zokukhiqizwa kwamandla aphezulu komshini wokubumba we-120y Blow. Lawula ngokunembile isilinganiso sokugeleza kanye nokusatshalaliswa kwezinto ezivuthiwe ukuqinisekisa ubukhulu bodonga olufanayo ngesikhathi sokubumba imikhiqizo yevolumu enkulu ye-Ultra, nokuqeda amandla ekhwalithi yomkhiqizo, bese kuqeda amandla ekhwalithi okubangelwa ukondliwa okungalingani.
