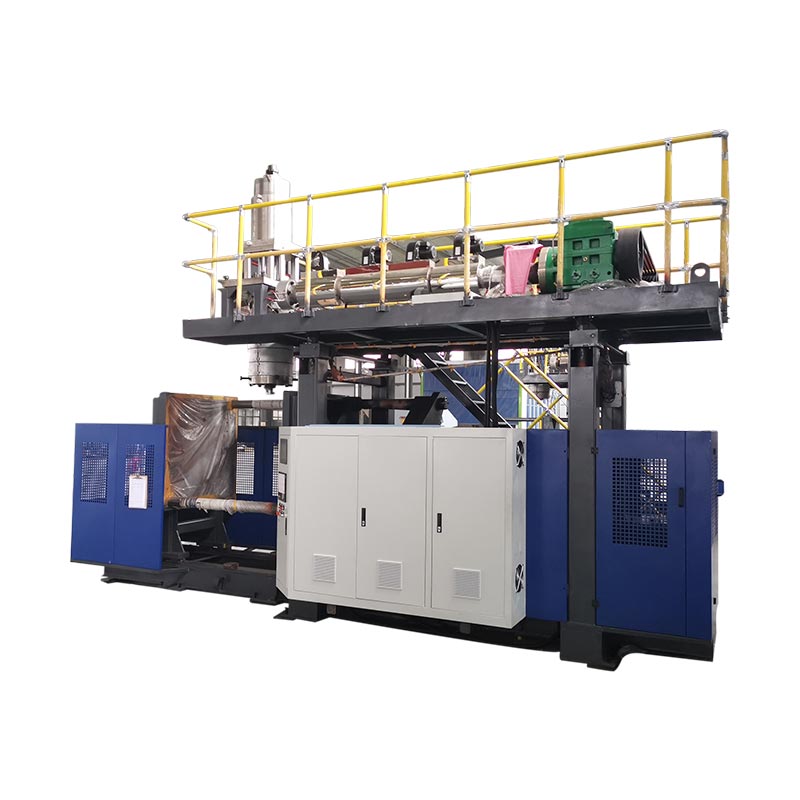

I-Pallet Extrusion Blow Machine Yokubumba

Model:KGS120A

Zivelele emakethe yefenisha nge-KGS120A ngokwezifiso ze-Pallet Extrusion Blow Machine yokubumba, okuhambisana nezicelo zomshini wokubumba kwangaphandle. Iphelele etafuleni lepulasitiki / ipulasitiki yokwenza izinto ezikhethekile ekwenzeni okukhethekile, inikeza ama-design ahambisana nekhwalithi ephezulu, ikunikeze umphetho wokuncintisana.

IVolumu: 1000lIsisindo: 32t

Thumela Uphenyo

Incazelo Yomkhiqizo

I-KGS120A Pallet Extrusion Blow Ukuhlanganisa Umshini Wokubumba Ukwakha Iphaneli Yepulasitiki Thayipha umkhiqizo, njengeThebula / Indlu Yendlu njll. Umshini ungahle uhlangane nazo lezo zidingo ezikhethekile zokukhiqiza umkhiqizo, ngokukhiqizwa okusheshayo okuyisivinini sokugcina izindleko zeyunithi.
Kubandakanya isilawuli sogqinsi se-MOOG 100, ingalo yerobhothi, nangaphansi Uhlelo lokushaya, ukuthuthukisa umkhiqizo kanye nekhwalithi.

Ukucacisa

inombolo yomkhiqizo	I-Material HDPE ...	Isilinda ka-Mold Ukuvala uwoyela (amasilinda amathathu)
inombolo yomkhiqizo	I-Material HDPE ...	Imodeli Yomshini: KGS120A
Ukucacisa
1	Umthamo we-MAX	1000 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	8.3 m × 6.8 m
4	Isisindo somshini	I-32t
I-Clamping Unit
1	Amandla eCembang	1000 kn
2	Usayizi we-Mold Platen (w × h)	1300 mm × 1900 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-600 mm-1600 mm
4	Unhlangothi oluhamba kancane	I-700 mm
5	Ubukhulu be-Max Mold (w × h)	I-1000 mm × 2000 mm
6	Ubukhulu bokubumba	I-630 mm - 830 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	25 kw
2	I-Servo Pump Pumplement	200 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	2 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	110 kW -130 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	I-120 mm
2	Isikulufa l / d ratio	30 l / d
3	I-HDPEMELTITTITITITITE capacit ye-HDPE	I-350 kg / hr
4	Inani lendawo yokushisa	6 Zone
5	Isikulufa sokushisa amandla	32.5 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	90 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.8 kw
3	Ububanzi be-MaxDie-Pin	I-600 (700) mm
4	Umthamo we-Accumulator	20 (25) l
5	(Pe) isisindo se-accumulator	15 (18) kg

Izici nezinzuzo

Isetshenziselwe ukukhiqiza imikhiqizo emikhakheni ehlukahlukene. Noma ngabe iziqukathi ezinkulu zokugqwala ezivinjezelwa embonini yamakhemikhali, emabhodleleni angenawo amazinga aqinile wokuhlanzeka embonini yezidlo, noma emabhokisini apakisha avela emikhiqizweni yansuku zonke yamakhemikhali, kungalawulwa ngokunembile ukuze kuhlangane nezidingo ezihlukahlukene zemakethe.
Inqubo yokudla yamukele ubuchwepheshe obunqenqemeni futhi ilungiselelwe ngokususelwa kwizici zokukhiqizwa kwamandla aphezulu komshini wokubumba we-120a blow. Lawula ngokunembile isilinganiso sokugeleza kanye nokusatshalaliswa kwezinto ezivuthiwe ukuqinisekisa ubukhulu bodonga olufanayo ngesikhathi sokubumba imikhiqizo yevolumu enkulu ye-Ultra, nokuqeda amandla ekhwalithi yomkhiqizo, bese kuqeda amandla ekhwalithi okubangelwa ukondliwa okungalingani.

Izindawo zohlelo lokusebenza

Itafula langaphandle lepulasitiki

Umthandi

1. Malini imodeli yokuqongelela imodeli yokubumba?

Ngenxa yokwehluka komkhiqizo, umshini ungaba ne-robot arm / blowing engezansi uhlelo / idivaysi yesistimu, njll. Sicela wabelane ngokucaciswa komkhiqizo wakho, khona-ke thina hlinzeka ngesisombululo senkomba.

2. Ngingayikhetha kanjani imodeli efanele?

Amabhodlela ajwayelekile / ama-barnels njll. Amaphakheji, vele uqinisekise ivolumu le-max ye umshini. Kweminye imikhiqizo ekhethekile, isidingo cabanga nge platen / ukukhishwa / Amandla njll, sicela uxhumane nathi ukuze uthole ikhambi elifanele.

3. Qhathanisa nolunye uhlobo lomkhiqizo, kungani ngikhetha umshini wokubumba we-Kisole?

I-Kingle yathuthumela ngokubumba okushaya kusukela ngo-2008, okuhlangenwe nakho kwethu kungasekela okusha amakhasimende ukusungula ngokushesha imigqa yokukhiqiza futhi afinyelele utshalomali iyabuya. Eminyakeni engama-20 edlule, sithuthukile ngokuqhubekayo futhi sakhiwe ngokuzimela, ukuzuza ukukhiqizwa okuzinzile nokusebenzayo.

4. Yini isiqinisekiso sakho sekhwalithi yomshini?

Sizoba imishini yokuhlola ephezulu kakhulu ngaphambi kokulethwa ukuze uqiniseke ukuthi ukukhiqizwa kuzinzile. Futhi ahlinzeke iwaranti yeminyaka engu-1 selokhu kwafika umshini ifektri yakho. Uma kudingeka, futhi kunganikeza isitifiketi se-SGS.

5. Ngabe uhlinzeka ngokuqeqeshwa njalo kokulungiswa noma ukuxilongwa okukude kwephutha?

Yebo, asinawo amafayela wokulungiselela kuphela kepha futhi sibe nemibhalo yobuchwepheshe / Amavidiyo wokuxazulula izinkinga.
Uhlelo lomshini lunohlelo lwe-alamu, olungasiza kude Izinkinga Zokuxazulula Izinkinga

6. Iyini insizakalo yakho yokuthengisa ngemuva kokuthengisa?

Singathumela unjiniyela efektri yakho ukukusiza ukufaka nokuqeqesha, okuyinhloko izakhi ziza nesikhathi se-1-2 sewaranti yesikhathi, nezingxenye ezintekenteke zingaba ithathelwe indawo mahhala kungakapheli unyaka owodwa.
