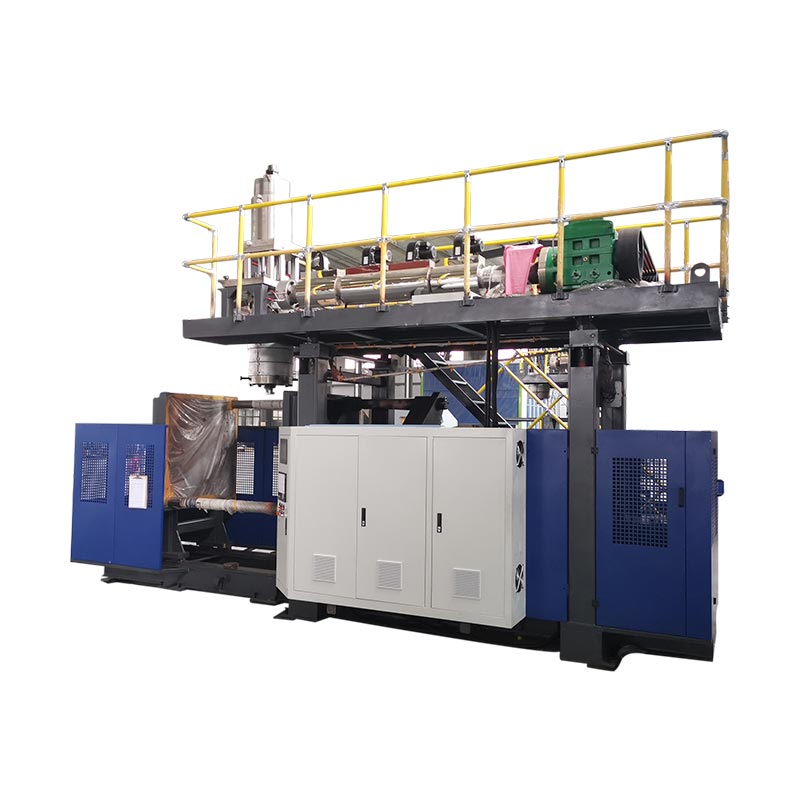

I-Float Blow Machine Yokubumba

Model:KGB110B

I-KGB110B Float Blow Eard Machine Suite yomshini wokubumba we-160l ngokucindezela okuphezulu, ingabiza amapulasitiki we-Jerry Clow wokuhlanganisa izingxenye zokubumba kanye nezingxenye ze-auto zepulasitiki zishaya imishini yokubumba. Isicelo sihlukahlukene, njengamakhemikhali amakhemikhali angama-160l, amaphaneli wezimoto, kanye namathangi okugcina izimboni, aqinisekise ukukhiqizwa okuthe xaxa emikhakheni.

IVolumu: 160lIsisindo: 24T

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli ejwayelekile ye-KGB110B, inhloko ephambili ye-accumulator eshisayo ishaya umshini wokubumba, Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi Uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Lo mshini ohlukahlukene ilungele izicelo ezahlukahlukene, kufaka phakathi i-Chemical Drum Blow Ukubumba Izixazululo Zomshini, izinqubo zokukhishwa kweplastiki zokukhwabanisa, izinhlelo zokusebenza zomshini wokubumba wokuzibambisa, kanye nokukhiqizwa kokufakwa kwamakhemikhali Imiphongolo, amathangi ezimoto, izinhlelo zokutholwa kwamathoyizi wokubumba izisetshenziswa, izingxenye ze-auto, Izithiyo zethrafikhi, ifenisha yezokwelapha, ama-buoys antantayo, izihlalo namatafula.

Ukucacisa

inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Isilinda ka-Mold Ukuvala uwoyela (isilinda esisodwa)
inombolo yomkhiqizo	Indwangu PE, PP, ABS ...	Imodeli Yomshini: KGB110B
Ukucacisa
1	Umthamo we-MAX	160 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	6.6 m x 4.2 m x 5.2 m
4	Isisindo somshini	24K
I-Clamping Unit
1	Amandla eCembang	760 k
2	Usayizi we-Mold Platen (w × h)	I-1100 mm × 1400 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-600 mm -1600 mm
4	Unhlangothi oluhamba kancane	I-600 mm
5	Ubukhulu be-Max Mold (w × h)	I-1000 mm × 1400 mm
6	Ubukhulu bokubumba	I-610 mm - 750 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	25 kw
2	I-Servo Pump Pumplement	200 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	70 KW - 80 kW
Iyunithi ye-extruder
1	Isikulufa ububanzi	110 mm
2	Isikulufa l / d ratio	30 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	180 KG / HR -220 kg / hr
4	Inani lendawo yokushisa	5 Zone
5	Isikulufa sokushisa amandla	28 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	90 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.5 KW
3	Ububanzi be-MaxDie-Pin	450 (600) mm
4	Umthamo we-Accumulator	20 (20) l
5	(Pe) isisindo se-accumulator	15 (15) kg

Izici nezinzuzo

Ukumba okujulile kumandla wezobuchwepheshe kunganikeza izixazululo zomkhiqizo eziphezulu eziphezulu zamakhasimende aphishekela ukusebenza kwezindleko; Futhi ingakha ungqimba oluphindwe kabili noma izakhiwo eziyinhlanganisela eziningi ezinobungcweti bezandla ezinhle kakhulu
Inika amandla imisebenzi ebalulekile yomshini wokubumba we-110b wokubumba ngohlelo oluqinile noluthembekile lweHydraulic Power. Ukudluliselwa kwamandla okuqhubekayo nokuzinzile kuqinisekisa ukuvulwa okudala nokuvalwa okunamandla kokubumba, ukusebenziseka okubushelelezi nokusebenzayo kwemisebenzi yokukhiqiza isikhathi eside ne-high-incity ukukhiqiza, imishini ingagcina imikhiqizo esezingeni eliphakeme kakhulu.

Izindawo zohlelo lokusebenza

Izingxenye ezenzakalelayo, izithiyo zomgwaqo, ifenisha yezokwelapha, ama-buoys antantayo, izihlalo namatafula.

Umthandi

1. Malini imodeli yokuqongelela imodeli yokubumba?

Ngenxa yokwehluka komkhiqizo, umshini ungaba ne-robot arm / blowing engezansi uhlelo / idivaysi yesistimu, njll. Sicela wabelane ngokucaciswa komkhiqizo wakho, khona-ke thina hlinzeka ngesisombululo senkomba.

2. Ngingayikhetha kanjani imodeli efanele?

Amabhodlela ajwayelekile / ama-barnels njll. Amaphakheji, vele uqinisekise ivolumu le-max ye umshini. Kweminye imikhiqizo ekhethekile, isidingo cabanga nge platen / ukukhishwa / Amandla njll, sicela uxhumane nathi ukuze uthole ikhambi elifanele.

3. Qhathanisa nolunye uhlobo lomkhiqizo, kungani ngikhetha umshini wokubumba we-Kisole?

I-Kingle yathuthumela ngokubumba okushaya kusukela ngo-2008, okuhlangenwe nakho kwethu kungasekela okusha amakhasimende ukusungula ngokushesha imigqa yokukhiqiza futhi afinyelele utshalomali iyabuya. Eminyakeni engama-20 edlule, sithuthukile ngokuqhubekayo futhi sakhiwe ngokuzimela, ukuzuza ukukhiqizwa okuzinzile nokusebenzayo.

4. Yini isiqinisekiso sakho sekhwalithi yomshini?

Sizoba imishini yokuhlola ephezulu kakhulu ngaphambi kokulethwa ukuze uqiniseke ukuthi ukukhiqizwa kuzinzile. Futhi ahlinzeke iwaranti yeminyaka engu-1 selokhu kwafika umshini ifektri yakho. Uma kudingeka, futhi kunganikeza isitifiketi se-SGS.

5. Ngabe uhlinzeka ngokuqeqeshwa njalo kokulungiswa noma ukuxilongwa okukude kwephutha?

Yebo, asinawo amafayela wokulungiselela kuphela kepha futhi sibe nemibhalo yobuchwepheshe / Amavidiyo wokuxazulula izinkinga.
Uhlelo lomshini lunohlelo lwe-alamu, olungasiza kude Izinkinga Zokuxazulula Izinkinga

6. Iyini insizakalo yakho yokuthengisa ngemuva kokuthengisa?

Singathumela unjiniyela efektri yakho ukukusiza ukufaka nokuqeqesha, okuyinhloko izakhi ziza nesikhathi se-1-2 sewaranti yesikhathi, nezingxenye ezintekenteke zingaba ithathelwe indawo mahhala kungakapheli unyaka owodwa.
