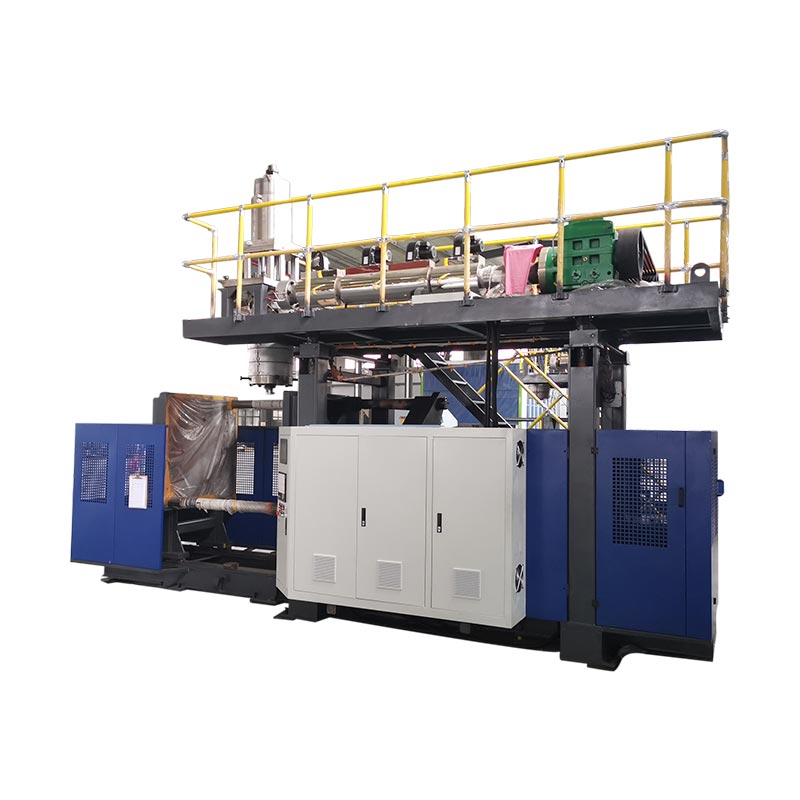

ABS Blow Blow Equw Eader Machine

Model:KGB110A-ABS

Guqula ukukhiqizwa kwezitho zakho ze-auto nge-KGB110A-Abs, umshini wokusika we-ABS Blow Blow ekhethekile yokubumba okucacisiwe ukucacisa okuhle kwezicelo zomshini wokubumba izitho! Ilungele i-Abs Plaseers Blow Blow Machine yokubumba idinga njengeziphangini kanye namadeshibhodi, kusiza ukuhola imakethe yezimoto ngekhwalithi ephezulu.

IVolumu: /Isisindo: 25t

Thumela Uphenyo

Incazelo Yomkhiqizo

I-KGB110A-ABS iyisimo esikhethekile somshini wokubumba ngalezo zingxenye ze-auto Umkhiqizi. Umshini okhethekile wokuvuselela umshini wokubumba ngokukhishwa okuphezulu kwengcindezelo nokushaya Dala indawo ephelele ukusindisa isikhathi se-post-inqubo. Kanye nomshini owenziwe ngezifiso Platen ukuyolingana nemikhiqizo ethambile yomkhakha, Gcina izindleko zemishini yokutshalwa kwezimali.

Ukucacisa

inombolo yomkhiqizo	I-Material PE, PP, ABS, HMWWDPE ...	Uchungechunge olukhethekile lomshini
inombolo yomkhiqizo	I-Material PE, PP, ABS, HMWWDPE ...	Imodeli Yomshini: KGB110A-ABS
Ukucacisa
1	Umthamo we-MAX	/
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	6.6 m x 4.2 m x 5.2 m
4	Isisindo somshini	25 t
I-Clamping Unit
1	Amandla eCembang	1000 kn
2	Usayizi we-Mold Platen (w × h)	I-1100 mm x1600 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-600 mm -1600 mm
4	Unhlangothi oluhamba kancane	I-600 mm
5	Ubukhulu be-Max Mold (w × h)	I-1000 mm × 1400 mm
6	Ubukhulu bokubumba	I-610 mm -750 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	30 KW + 22 kw
2	I-Servo Pump Pumplement	200 l / min +138 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	1.8 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	70 KW - 80 kW
Iyunithi ye-extruder
1	Isikulufa ububanzi	110 mm
2	Isikulufa l / d ratio	28 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	180 KG / HR -220 kg / hr
4	Inani lendawo yokushisa	4 Zone
5	Isikulufa sokushisa amandla	24 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	90 kw
Die ikhanda
1	Inani lezingxenye zokushisa	5 Zone
2	Ukushisa Amandla	38.5 kw
3	Ububanzi be-MaxDie-Pin	I-450 mm
4	Umthamo we-Accumulator	12 (20) l
5	(Pe) isisindo se-accumulator	9 (15) kg

Izici nezinzuzo

Ukumba okujulile kumandla wezobuchwepheshe kunganikeza izixazululo zomkhiqizo eziphezulu eziphezulu zamakhasimende aphishekela ukusebenza kwezindleko; Futhi ingakha ungqimba oluphindwe kabili noma izakhiwo eziyinhlanganisela eziningi ezinobungcweti bezandla ezinhle kakhulu
Ukusebenza Kokuhle Kokhiye Wama-110a-Ab-AB clow wokubumba ngohlelo oluqinile noluthembekile lweHydraulic Power System. Ukudluliselwa kwamandla okuqhubekayo nokuzinzile kuqinisekisa ukuvulwa okudala nokuvalwa okunamandla kokubumba, ukusebenziseka okubushelelezi nokusebenzayo kwemisebenzi yokukhiqiza isikhathi eside ne-high-incity ukukhiqiza, imishini ingagcina imikhiqizo esezingeni eliphakeme kakhulu.
