1214 Umshini Wokuhambisa IPalket Ukwenza

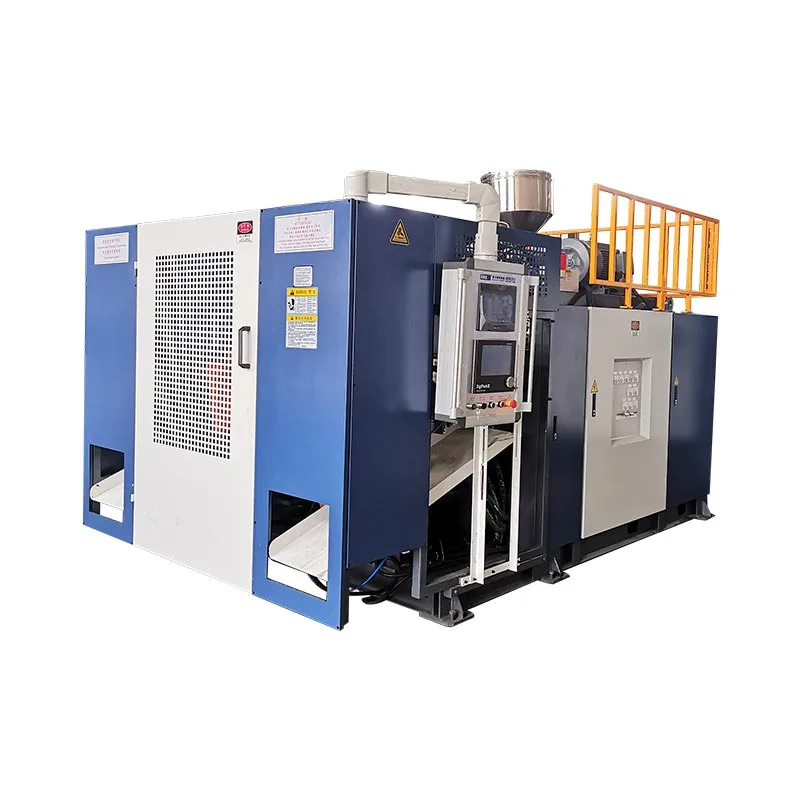

Model:KGS150A

Yethula i-KGS150A okuwumshini owenza umsebenzi othembekile we-pallet we-1214 eyenzelwe umshini wokubumba we-blow for Of Logistics Pallet application. Iqondiswe nge-Big Pallet Extrusion Blow Machine Machine Machine, iqinisekisa ukuqina okuhlala isikhathi eside kanye nokonga izindleko ongathembela kukho.

IVolumu: 2000lIsisindo: 45t

Thumela Uphenyo

Incazelo Yomkhiqizo

I-KGS150A ingukucaciswa okunembile ngomshini owenziwa nge-1214 we-Pallet yokwenza, Izici eziphawuleka zifaka design modular for ama-Pallet asayizi ama-Multi-size, Izinhlelo ze-Servo-eziqhutshwa ngokulondolozwa kwamandla, i-HMI esebenziseka kalula (Isikhombimsebenzisi somshini womuntu) sokusebenza okwenziwe lula, kanye nokushintsha okusheshayo kokushintsha amakhono okuthuthukisa umkhiqizo. Amaphakethe aqediwe asetshenziswa kabanzi Emagangeni, ekugcizeleleni, ukucubungula ukudla, kanye nezimboni zokukhiqiza, Ukunikeza izinzuzo njengokuhlukaniswa okungasindi, ukumelana nokugqwala, kanye nokumelana nomthelela, kubenza babe ngenye indlela enobungane amaphallet enziwe ngokhuni.

Ukucacisa

inombolo yomkhiqizo	I-Material HDPE ...	Isilinda ka-Mold Ukuvala uwoyela (amasilinda amathathu)
inombolo yomkhiqizo	I-Material HDPE ...	Imodeli Yomshini: KGS150A
Ukucacisa
1	Umthamo we-MAX	2000 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	8.5 m × 3.8 m x 6 m
4	Isisindo somshini	45 t
I-Clamping Unit
1	Amandla eCembang	1800 kn
2	Usayizi we-Mold Platen (w × h)	I-1600 mm x 1900 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-800 mm - 2200 mm
4	Unhlangothi oluhamba kancane	I-1000 mm
5	Ubukhulu be-Max Mold (w × h)	I-1400 mm × 1900 mm
6	Ubukhulu bokubumba	I-830 mm - 1150 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	25 kw
2	I-Servo Pump Pumplement	200 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	2 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	110 kW -150 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	150 mm
2	Isikulufa l / d ratio	30 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	I-500 kg / hr -600 kg / hr
4	Inani lendawo yokushisa	5 Zone
5	Isikulufa sokushisa amandla	32.5 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	160 (180) kw
Die ikhanda
1	Inani lezingxenye zokushisa	6 Zone
2	Ukushisa Amandla	39 kw
3	Ububanzi be-MaxDie-Pin	800 (950) mm
4	Umthamo we-Accumulator	45 (60) l
5	(Pe) isisindo se-accumulator	33 (45) kg

Izici nezinzuzo

Isakhiwo esingenalutho esakhiwa ngokuBlow Solding sinikeza umthamo womthwalo ohlukile (amathani ama-1-3) kanye nokumelana nomthelela, okulungele izimo ezinokhahlo njengamaketanga abandayo kanye nezimboni ezisindayo.
Ukulungiswa okusheshayo kokubumba kunika amandla osayizi abahlukahlukene, amajamo (e.g., 9-umlenze, "chuan" -The, nemininingwane esebenzayo (imininingwane yokusebenza (ukwakheka okusebenzayo) ukufeza izidingo zohlelo lokusebenza ezahlukahlukene.
Izinto zokusetshenziswa ezi-100% ezivuthayo, ukuphuma okulimazayo ngesikhathi sokukhiqiza, kanye nesikhathi sokuphila esidlula iminyaka eyi-10 kunciphisa ukusetshenziswa kwezinsizakusebenza kakhulu kanye nekhabhoni yonyawo lwekhabhoni.
