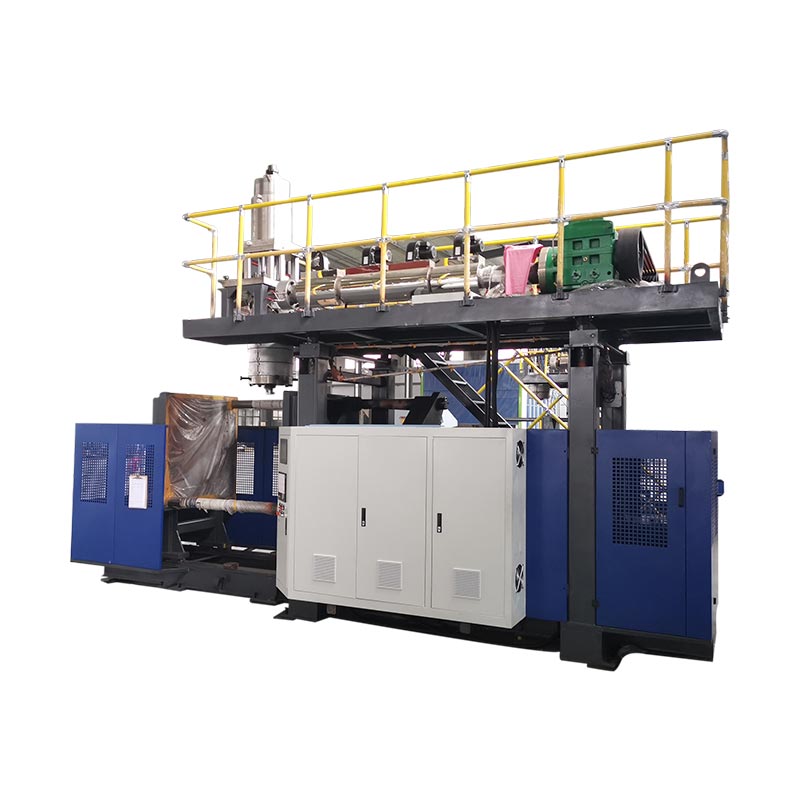

I-1210 Pallet Blow Machine Yokubumba

Model:KGS135A

Enhliziyweni yezidingo zakho zokukhiqiza, i-KGS13A iyinhlangano ethembekile engu-1210 Pallet Blow Machine yokubumba ye-Pallet-Special Blow Wlow Machine Machine. Kuza ukusekela kukhiqiza amathangi angama-25 noma amathangi amanzi angu-1000l ngehora ngesilinganiso esibi esingezansi kwe-0.3%. Ekhethekile ukukhiqizwa okuhlukahlukene kwezimboni

IVolumu: 2000lIsisindo: 43t

Thumela Uphenyo

Incazelo Yomkhiqizo

I-KGS135A iye yathuthukiswa ngokunemba kumshini wokubumba wePhellet we-1210, Izici eziphawuleka zifaka design modular for ama-Pallet asayizi ama-Multi-size, Izinhlelo ze-Servo-eziqhutshwa ngokulondolozwa kwamandla, i-HMI esebenziseka kalula (Isikhombimsebenzisi somshini womuntu) sokusebenza okwenziwe lula, kanye nokushintsha okusheshayo kokushintsha amakhono okuthuthukisa umkhiqizo. Amaphakethe aqediwe asetshenziswa kabanzi Emagangeni, ekugcizeleleni, ukucubungula ukudla, kanye nezimboni zokukhiqiza, Ukunikeza izinzuzo njengokuhlukaniswa okungasindi, ukumelana nokugqwala, kanye nokumelana nomthelela, kubenza babe ngenye indlela enobungane amaphallet enziwe ngokhuni.

Ukucacisa

inombolo yomkhiqizo	I-Material HDPE ...	Isilinda ka-Mold Ukuvala uwoyela (amasilinda amathathu)
inombolo yomkhiqizo	I-Material HDPE ...	Imodeli yomshini: kgs135a
Ukucacisa
1	Umthamo we-MAX	2000 l
2	Okukhiphayo (umjikelezo owomile)	I-300 PC / hr
3	I-Machine Dimension (l × w × h × h)	8.5 m × 3.8 m x 6 m
4	Isisindo somshini	43 t
I-Clamping Unit
1	Amandla eCembang	1800 kn
2	Usayizi we-Mold Platen (w × h)	I-1400 mm x 1800 mm
3	Amapuleti okuvula ngaphandle kwempondo	I-800 mm - 2200 mm
4	Unhlangothi oluhamba kancane	I-1000 mm
5	Ubukhulu be-Max Mold (w × h)	I-1400 mm × 1900 mm
6	Ubukhulu bokubumba	I-830 mm - 1150 mm
Ubuqhwaga
1	Amandla we-selvooil mpompo	25 kw
2	I-Servo Pump Pumplement	200 l / min
3	I-Blowprestrure	0.8 MPA
4	Ukusetshenziswa komoya komoya	2 m² / mi
5	Ukupholisa Ukucindezela Kwamanzi	0.3 MPA
6	Ukusetshenziswa kwamanzi	120 l / min
7	Isilinganiso sokusetshenziswa kwamandla	110 kW -150 kw
Iyunithi ye-extruder
1	Isikulufa ububanzi	135 mm
2	Isikulufa l / d ratio	30 l / d
3	Ukuncibilika kwe-capacit ye-HDPE	400 kg / hr -500 kg / hr
4	Inani lendawo yokushisa	5 Zone
5	Isikulufa sokushisa amandla	32.5 kw
6	Isikulufa FANPPOWER	0.6 kw
7	Amandla wemoto extruder	132 (160) kw
Die ikhanda
1	Inani lezingxenye zokushisa	6 Zone
2	Ukushisa Amandla	39 kw
3	Ububanzi be-MaxDie-Pin	I-850 mm
4	Umthamo we-Accumulator	30 (45) l
5	(Pe) isisindo se-accumulator	22 (33) kg

Izici nezinzuzo

Isakhiwo esingenalutho esakhiwa ngokuBlow Solding sinikeza umthamo womthwalo ohlukile (amathani ama-1-3) kanye nokumelana nomthelela, okulungele izimo ezinokhahlo njengamaketanga abandayo kanye nezimboni ezisindayo.
Ukulungiswa okusheshayo kokubumba kunika amandla osayizi abahlukahlukene, amajamo (e.g., 9-umlenze, "chuan" -The, nemininingwane esebenzayo (imininingwane yokusebenza (ukwakheka okusebenzayo) ukufeza izidingo zohlelo lokusebenza ezahlukahlukene.
Izinto zokusetshenziswa ezi-100% ezivuthayo, ukuphuma okulimazayo ngesikhathi sokukhiqiza, kanye nesikhathi sokuphila esidlula iminyaka eyi-10 kunciphisa ukusetshenziswa kwezinsizakusebenza kakhulu kanye nekhabhoni yonyawo lwekhabhoni.

Izindawo zohlelo lokusebenza

Amaphakethe wezimboni, iziqukathi ezinkulu

Umthandi

1. Malini imodeli yokuqongelela imodeli yokubumba?

Ngenxa yokwehluka komkhiqizo, umshini ungaba ne-robot arm / blowing engezansi uhlelo / idivaysi yesistimu, njll. Sicela wabelane ngokucaciswa komkhiqizo wakho, khona-ke thina hlinzeka ngesisombululo senkomba.

2. Ngingayikhetha kanjani imodeli efanele?

Amabhodlela ajwayelekile / ama-barnels njll. Amaphakheji, vele uqinisekise ivolumu le-max ye umshini. Kweminye imikhiqizo ekhethekile, isidingo cabanga nge platen / ukukhishwa / Amandla njll, sicela uxhumane nathi ukuze uthole ikhambi elifanele.

3. Qhathanisa nolunye uhlobo lomkhiqizo, kungani ngikhetha umshini wokubumba we-Kisole?

I-Kingle yathuthumela ngokubumba okushaya kusukela ngo-2008, okuhlangenwe nakho kwethu kungasekela okusha amakhasimende ukusungula ngokushesha imigqa yokukhiqiza futhi afinyelele utshalomali iyabuya. Eminyakeni engama-20 edlule, sithuthukile ngokuqhubekayo futhi sakhiwe ngokuzimela, ukuzuza ukukhiqizwa okuzinzile nokusebenzayo.

4. Yini isiqinisekiso sakho sekhwalithi yomshini?

Sizoba imishini yokuhlola ephezulu kakhulu ngaphambi kokulethwa ukuze uqiniseke ukuthi ukukhiqizwa kuzinzile. Futhi ahlinzeke iwaranti yeminyaka engu-1 selokhu kwafika umshini ifektri yakho. Uma kudingeka, futhi kunganikeza isitifiketi se-SGS.

5. Ngabe uhlinzeka ngokuqeqeshwa njalo kokulungiswa noma ukuxilongwa okukude kwephutha?

Yebo, asinawo amafayela wokulungiselela kuphela kepha futhi sibe nemibhalo yobuchwepheshe / Amavidiyo wokuxazulula izinkinga.
Uhlelo lomshini lunohlelo lwe-alamu, olungasiza kude Izinkinga Zokuxazulula Izinkinga

6. Iyini insizakalo yakho yokuthengisa ngemuva kokuthengisa?

Singathumela unjiniyela efektri yakho ukukusiza ukufaka nokuqeqesha, okuyinhloko izakhi ziza nesikhathi se-1-2 sewaranti yesikhathi, nezingxenye ezintekenteke zingaba ithathelwe indawo mahhala kungakapheli unyaka owodwa.
