160l float blow umshini wokubumba

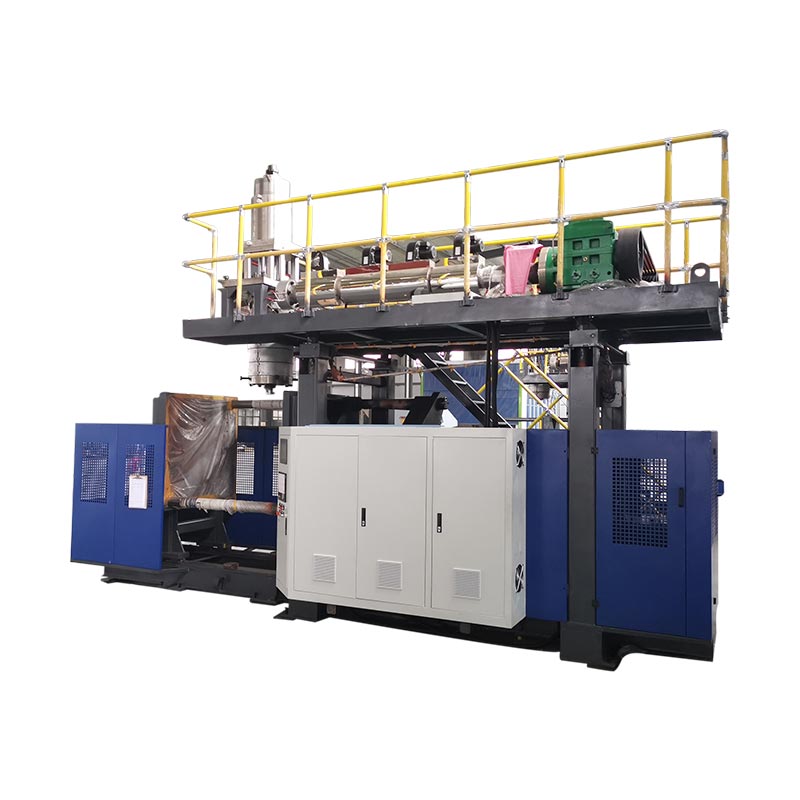

Model:KGB110F

Ukuze uxhase imboni yokuntanta, i-KGB110F 160L Float Blow Blow Equing Machine Ithenjwa ngabakhiqizi bomshini wokubumba emhlabeni jikelele. Ngezinhlelo zokusebenza zemishini yokubumba epulasitiki efana ne-Cube Float / Solar Float / Marine Floats kanye namapulatifomu athambile, kuqinisekisa ukukhiqizwa okusebenzayo kwezindleko nokuqina isikhathi eside. Ungaphuthelwa - Xhumana nathi ukuguqula umkhiqizo wakho namuhla!

IVolumu: 160lIsisindo: 24T

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Imodeli ejwayelekile ye-KGB110F, ikhanda eliholayo le-accumulator lishayele umshini wokubumba, Kubandakanya isilawuli sokuqina kwe-moog 100, ingalo ye-robot, nokuvunguza okuphansi Uhlelo, ukuthuthukisa umkhiqizo kanye nekhwalithi yomkhiqizo. Lo mshini wokubumba wokubumba we-160LL Blow Blow Ilungele izinhlelo zokusebenza ezahlukahlukene, kufaka phakathi umshini we-Chemical Drum blow wokubumba izixazululo, izinqubo zokukhishwa kwepulasitiki zokukhwabanisa, ukushaya kwe-flow Izicelo zomshini wokubumba, kanye nokukhiqizwa kwamakhekhe amakhemikhali Imiphongolo, amathangi ezimoto, izinhlelo zokutholwa kwamathoyizi wokubumba izisetshenziswa, izingxenye ze-auto, traffic Izithiyo, ifenisha yezokwelapha, ama-buoys antantayo, izihlalo namatafula.

Izici nezinzuzo

Ukumba okujulile kumandla wezobuchwepheshe kunganikeza izixazululo zomkhiqizo eziphezulu eziphezulu zamakhasimende aphishekela ukusebenza kwezindleko; Futhi ingakha ungqimba oluphindwe kabili noma izakhiwo eziyinhlanganisela eziningi ezinobungcweti bezandla ezinhle kakhulu
Inika amandla imisebenzi ebalulekile yomshini wokubumba we-110f wokubumba ngohlelo oluqinile noluthembekile lweHydraulic Power System. Ukudluliselwa kwamandla okuqhubekayo nokuzinzile kuqinisekisa ukuvulwa okudala nokuvalwa okunamandla kokubumba, ukusebenziseka okubushelelezi nokusebenzayo kwemisebenzi yokukhiqiza isikhathi eside ne-high-incity ukukhiqiza, imishini ingagcina imikhiqizo esezingeni eliphakeme kakhulu.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB110F
Specifications
1	Max container capacity	160 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M × 5.2 M
4	Machine weight	24T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1900 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	600 MM ×1900 MM
6	Mold thickness	610 MM - 750 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	75(90) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	20 L
5	(PE)Accumulator weight	15 KG
