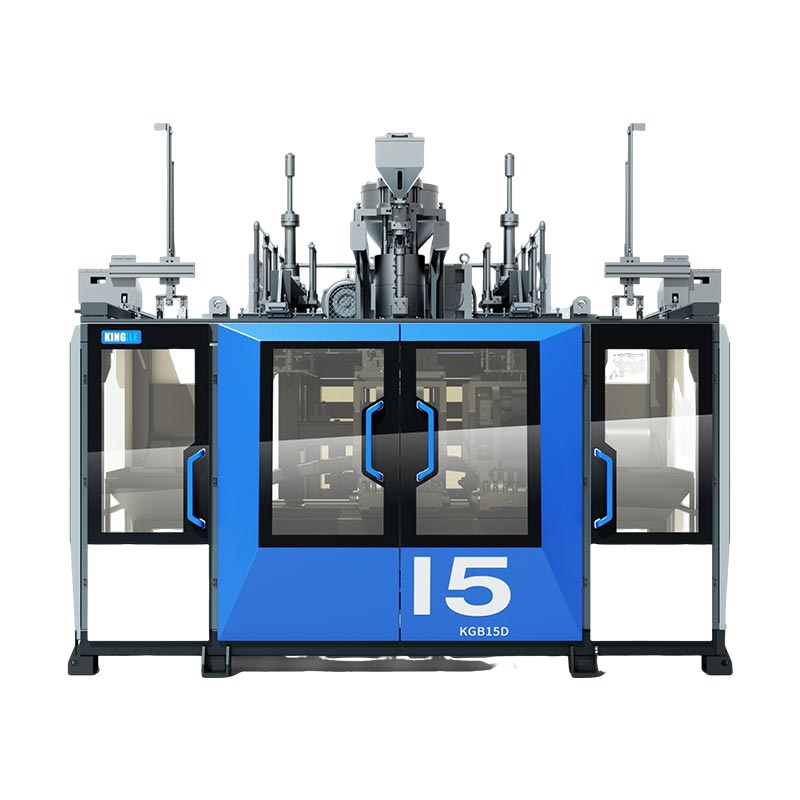

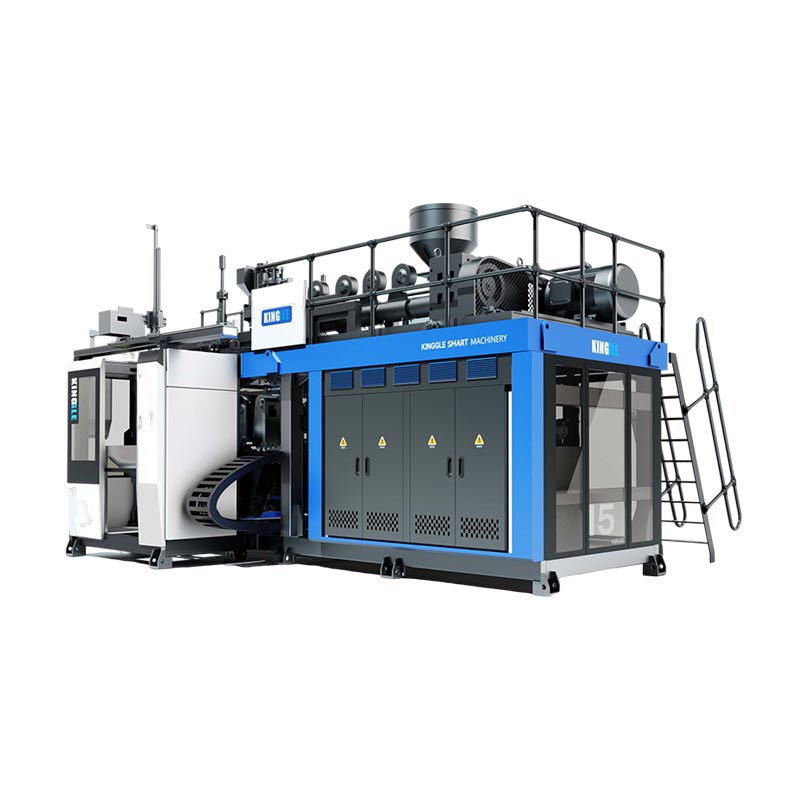

I-15l Station Double Stiw Blow Ukuhlanganisa Umshini Wokubumba

Model:KGH15D

Vuselela ukukhiqizwa kwebhodlela lakho nge-KGH15D, i-15l Station Blow Blow Yokubumba Umshini wokubumba othatha izinhlelo zokusebenza zokubumba amabhodlela wokubumba kokubumba kokuphakama kwemishini emisha! Iphelele ngezinhlelo zokusebenza zomshini wokubumba okuzenzakalelayo okuzenzakalelayo njengamabhodlela we-10l nama-15l, kukusiza ukuba ubuse imakethe ngokuphuma kwekhwalithi ephezulu.

IVolumu: 15lIsisindo: 18.5t

Thumela Uphenyo

Incazelo Yomkhiqizo Specification Application

Vuselela ukukhiqizwa kwebhodlela lakho nge-KGH15D, umshini wekhwalithi ephezulu ye-15l evutha isiteshi esiphakeme esiphakamisa ukukhishwa kwebhodlela lebhodlela lePulasitiki ukubumba ezindaweni eziphakeme. Yakhelwe izinhlelo zokusebenza ezifana namabhodlela angama-10l nama-15l, I-KGH15D iqinisekisa ukukhiqizwa okusebenzayo kweziqukathi ezisezingeni eliphakeme nge ukunemba okuhlukile. Ukuthi ukukhiqiza noma inkambiso enkulu Izicelo, lo mshini uqinisekisa ukuphuma okuphezulu okuphezulu, ukukusiza uhlale phambili emakethe. Ngezici ezithuthukile nokusebenza okuthembekile, The I-KGH15D inikeza isixazululo esifanelekile samabhizinisi afuna ukwenza kahle ukukhiqiza kanye nokukhulisa ikhwalithi yomkhiqizo.

Izici nezinzuzo

Khulisa ukukhiqizwa kwakho nge-Double-station yethu eqhubekayo yokuqhuma komshini wokubumba, yenzelwe iziqukathi ezifika ku-15l. Ngokucushwa okuguquguqukayo (2, 3, noma ama-4 amakhanda ekhanda amaningi), kuphatha uhla olubanzi lwamasayizi anezitsha, kusuka emabhodleleni amancane kuya ezitsheni ezinkulu ze-15l nemigqomo epulasitiki, ikhwalithi esebenzayo.
Ilungele izinhlelo zokusebenza ezifana ne-shampoo, ukuquleka kwezingubo zokuhlanza, kanye nokupakishwa kwezimonyo, lo mshini uletha ukukhiqizwa okuphezulu ngenkathi ugcina ikhwalithi ephezulu. Ukusebenza kwayo okuhlukahlukene nosizo olusebenzayo lunciphisa imfucuza nokukhulisa okukhishwayo, okwenza kube yisixazululo esisebenza ngemali esikhulisa ukubuya kwakho ekutshalweni kwemali.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
